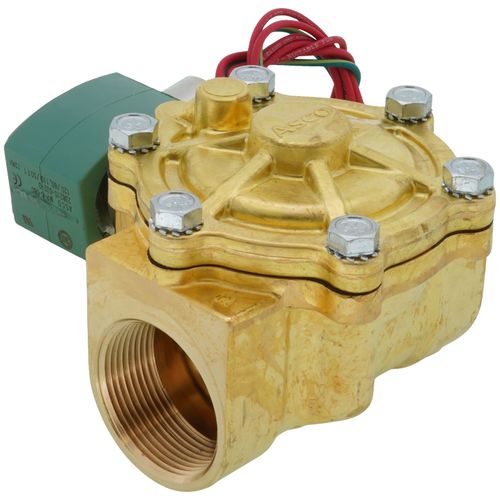

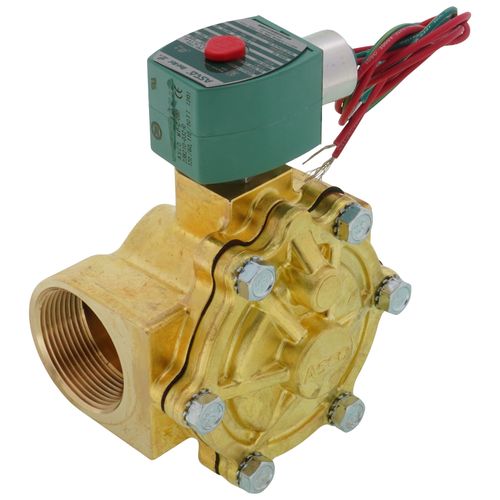

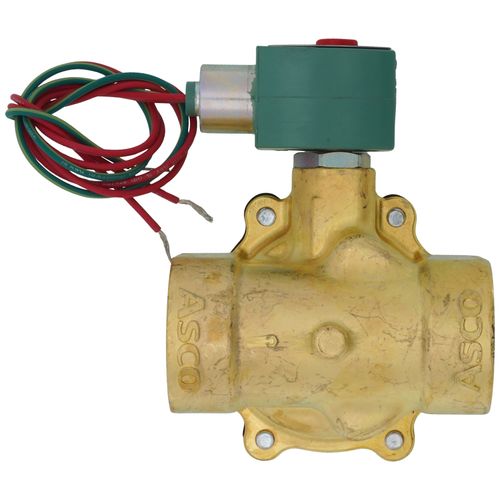

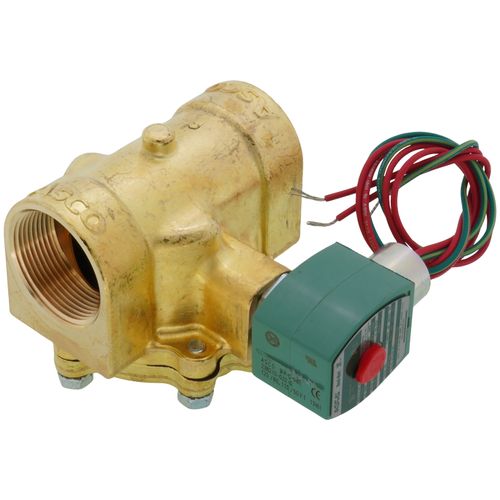

ASCO 8210G022 1-1/2" 2-Way Normally Closed Solenoid Valve (120V)
Couldn't load pickup availability
Got questions? Ask an expert!
The ASCO 8210G022 is a highly reliable 1-1/2-inch threaded 2-way normally closed solenoid valve engineered for high-flow liquid, corrosive, and air/inert gas service. Built with resilient internal materials to ensure exceptionally low internal leakage and a long service life, this 120V valve is capable of safely handling AC pressures up to 150 PSI for both air and water, and up to 100 PSI for light oil. Operating effectively in fluid temperatures up to 180°F, it provides secure and consistent flow management for demanding industrial applications such as car washes, air compressors, industrial water control, pumps, and commercial laundry equipment.
- Manufacturer: ASCO
- Part Number: 8210G022
- Product Type: Solenoid Valve
- Valve Design: 2-Way, Normally Closed
- Pipe Size: 1-1/2" (Threaded Connection)
- Electrical Specifications: 120V / 6.1 Watts
- Flow Capacity (Cv): 22.5 (High Flow)
- Maximum AC Air Pressure: 150 PSI
- Maximum AC Water Pressure: 150 PSI
- Maximum AC Light Oil Pressure: 100 PSI
- Fluid Temperature Range: Maximum 180°F
- Standard Enclosures: Watertight NEMA 4 and 4X (RedHat II Types 1, 2, 3, 3S, 4, and 4X) / Type I (RedHat)
- Optional Enclosures: Explosion-proof and Watertight options available (e.g., Types 3, 3S, 4, 4X, 6, 6P, 7, and 9)
- Compatible Media: Liquid, corrosive, and air/inert gas service
- Key Applications: Car wash, laundry equipment, air compressors, industrial water control, and pumps
- SKU ASCO8210G022-120
