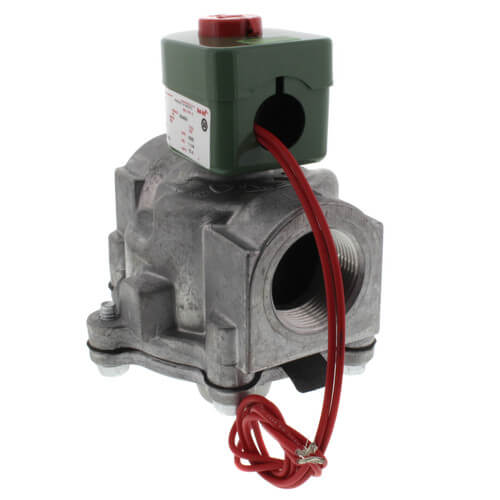

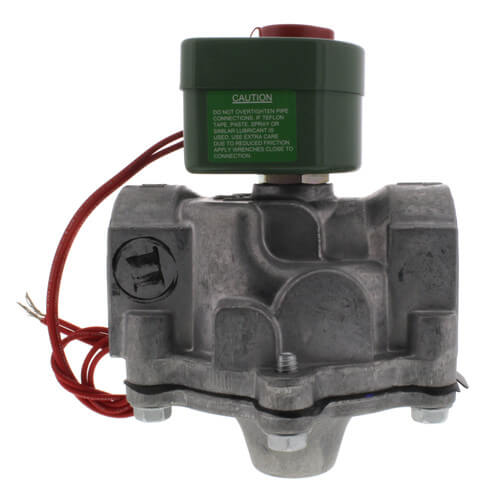

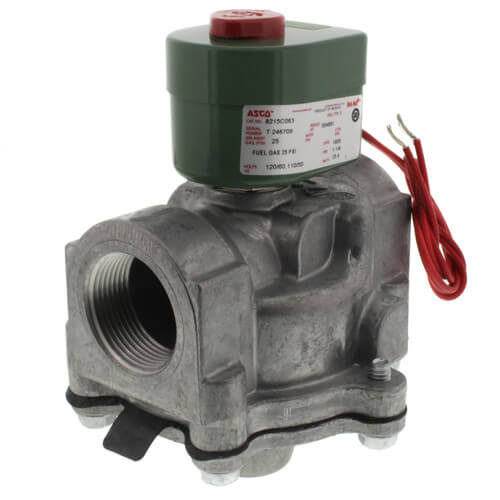

The ASCO 8215C063 is a versatile, lightweight 1-1/4-inch 2-way normally open solenoid blocking valve engineered for reliable air, gas, and vacuum service. Constructed with a durable aluminum body, it is an ideal, low-cost solution for low-pressure applications and can be effectively utilized in both double block and vent gas burners. Operating on a 120V system, this high-flow valve delivers an impressive 33 Cv and a substantial gas heating capacity of 1,793,250 BTU, while featuring robust standard NEMA 4 and 4X watertight enclosures for superior environmental protection.
Specifications
| Brand | ASCO |
|---|---|
| MPN | 8215C063 |
| Product type | Solenoid Blocking Valve |
| Valve design | 2-Way, Normally Open |
| Pipe size | 1-1/4" |
| Body material | Aluminum |
| Electrical specifications | 120V |
| Flow capacity (Cv) | 33 (High Flow) |
| Gas capacity | 1,793,250 BTU |
| Maximum temperature | 125°F |
| Compatible media | Air, fuel gas, and vacuum service |
| Standard enclosures | Watertight NEMA Types 1, 2, 3, 3S, 4, and 4X (RedHat II) / Type I (RedHat) |
| Optional enclosures | Explosion-proof and Watertight options available (depending on configuration) |
| Key applications | Ideal for low-pressure systems, double block configurations, and vent gas burners |
