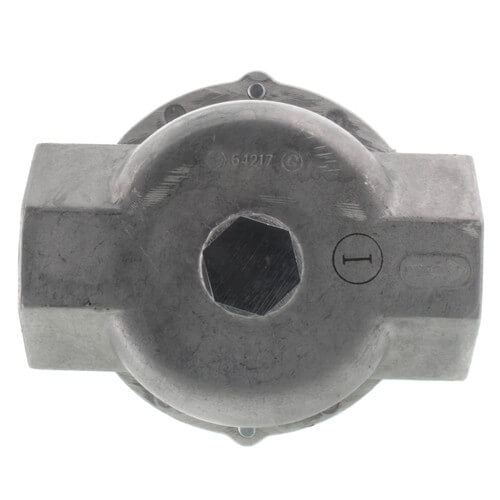

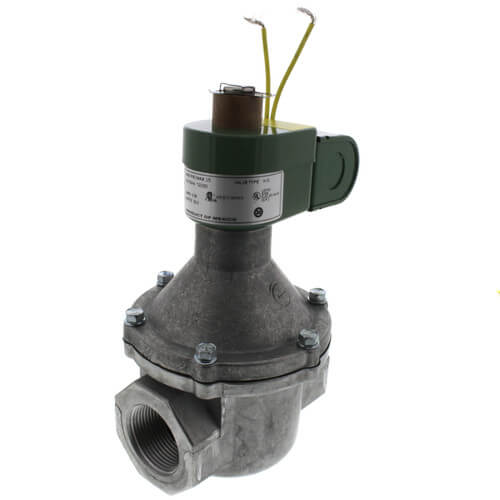

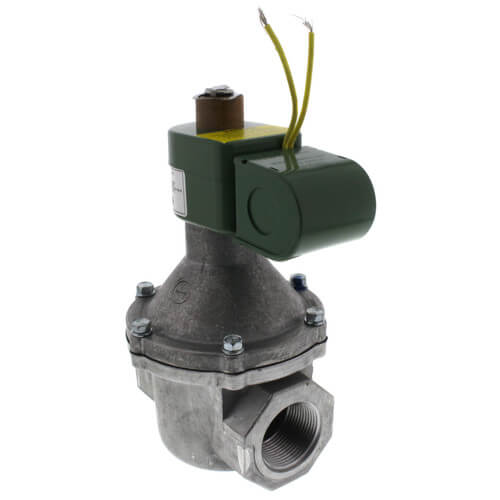

ASCO 1-1/4" 2-Way Normally Open Aluminum Gas Vent Solenoid Valve (1,710,000 BTU, 120V)

The ASCO S262 Series 1-1/4" NPT 2-way normally open gas vent valve is specifically designed for use in double block and vent systems, providing reliable on-off control of fuel gas in the vent line. Constructed with a durable die-cast aluminum body and featuring a zero differential piloted diaphragm, this 120V solenoid valve must be safely vented to the outside atmosphere. For added maintenance convenience, the unit is equipped with integrated pipe taps and plugs to facilitate fast and easy routine testing.

• Manufacturer: ASCO
• Series: S262 Series
• Product Type: Gas Vent Solenoid Valve
• Valve Design: 2-Way, Normally Open (Zero differential piloted diaphragm)
• Pipe Size: 1-1/4" NPT (Female Threaded Connection)
• Electrical Specifications: 120V / 60 Hz / 20 Watts
• Flow Capacity (Cv): 34
• Heating Capacity: 1,710,000 BTU
• Maximum Pressure: 25 PSI
• Body Material: Die-Cast Aluminum
• Internal Components: NBR seals and disc, 305/430F/302F stainless steel components, copper shading coil, cork body gasket, and zinc-plated steel pipe plug
• Temperature Rating: Suitable for ambient temperatures up to 175°F
• Application Note: Mounts directly in the vent piping between shutoff valves in double block and vent systems
