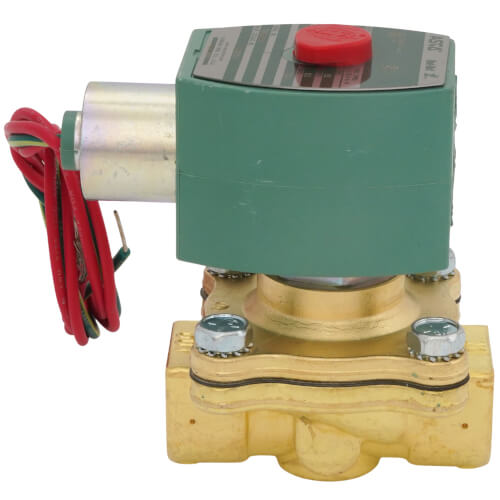

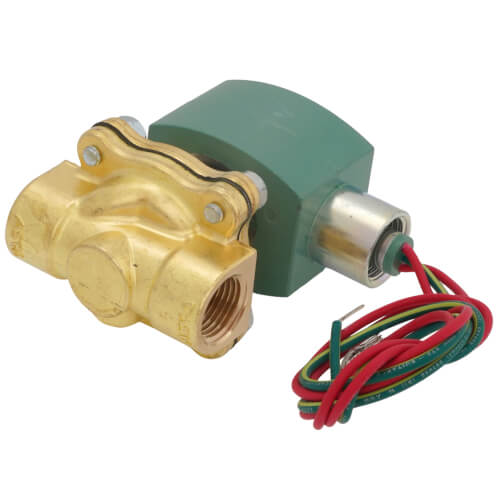

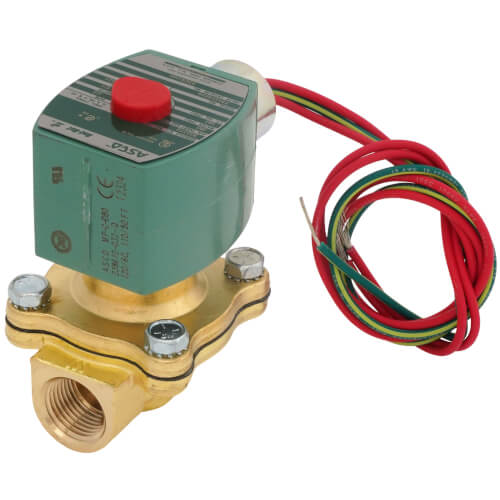

ASCO 8210G094 | 1/2" 2-Way Normally Closed Solenoid Valve (120V)
Couldn't load pickup availability
Got questions? Ask an expert!
The ASCO 8210G094 is an ultra-reliable, high-flow 1/2-inch NPTF 2-way normally closed solenoid valve from the proven 210 Series. Engineered for superior performance and a long service life with exceptionally low internal leakage, this pilot-operated valve features a robust brass body with resilient NBR seals. It operates on a 110/120V AC electrical system and safely manages water pressures from 0 up to 150 PSI. Designed for vertical mounting, it is highly versatile and ideally suited for demanding industrial applications including air compressors, car wash equipment, pumps, industrial water control, and commercial laundry equipment.
Specifications
| Brand | ASCO |
|---|---|
| MPN | 8210G094 |
| Product type | Pilot-Operated Solenoid Valve |
| Valve design | 2-Way, 2-Position, Normally Closed |
| Pipe size | 1/2" NPTF (Inlet and Outlet) |
| Orifice diameter | 5/8" |
| Body material | Brass with NBR seal |
| Electrical specifications | 110V / 120V AC (50/60 Hz, 10.1 Watts) |
| Electrical connections | 1/2" Conduit Hub |
| Flow capacity (Cv) | 4 (High Flow) |
| Pressure differential | 0 PSI (Min) / 150 PSI (Max Water Pressure) |
| Mounting orientation | Vertical |
| Compatible media | Air, inert gases, light oil, and water |
| Key applications | Air compressors, car wash equipment, industrial water control, laundry equipment, and pumps |
- SKU ASCO8210G094
Most in-stock items ship within 1–3 business days. Once shipped, you will receive a confirmation email with tracking. Special-order items or items shipped from partner warehouses may require additional processing time. Orders ship via UPS or USPS depending on the item and destination. If you need a specific carrier, please contact us before placing your order.
