ASCO 8220G406 | 1/2" NPT 2-Way Normally Closed Hot Water/Steam Solenoid Valve (120V)
Couldn't load pickup availability
Got questions? Ask an expert!

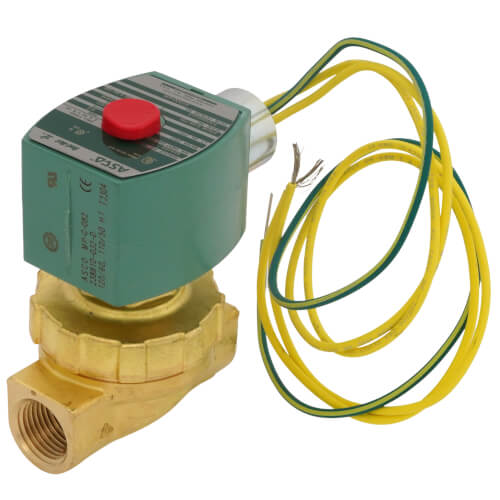

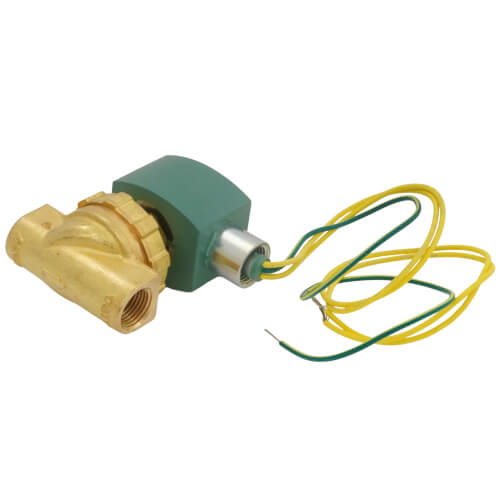

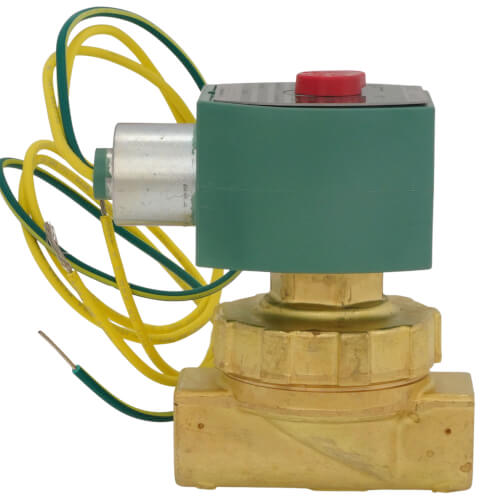

The ASCO 8220G406 is a robust 1/2-inch NPT 2-way normally closed solenoid valve engineered specifically for the reliable on/off control of high-temperature hot water and low-pressure steam. Constructed with a durable brass body, stainless steel seats, and resilient PTFE and EPDM discs, this 120V valve is built to withstand the rigorous challenges of high-temperature fluid handling. Equipped with high-temperature coils to ensure a long and reliable service life, it is an ideal solution for a variety of demanding applications, including dry cleaning, steam baths, sterilizers, autoclaves, molding, and commercial laundry equipment.
Specifications
| Brand | ASCO |
|---|---|
| MPN | 8220G406 |
| Product type | Hot Water & Steam Solenoid Valve |
| Valve design | 2-Way, Normally Closed |
| Pipe size | 1/2" NPT (Threaded Connection) |
| Body material | Brass |
| Internal components | Stainless steel seats with PTFE and EPDM discs |
| Electrical specifications | 120V / 60 Hz (Features high-temperature coil) |
| Maximum pressure rating | 150 PSI (Hot Water) / 50 PSI (Steam) |
| Maximum fluid temperature | 210°F (Hot Water) / 300°F (Steam) |
| Applications | Dry cleaning, steam irons, steam baths, autoclaves, molding, sterilizers, and laundry equipment |
- SKU ASCO8220G406
