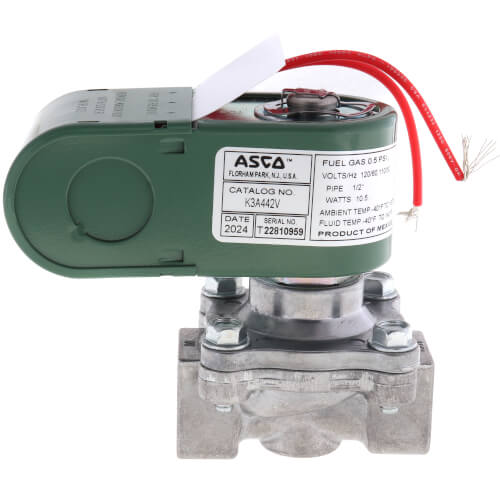

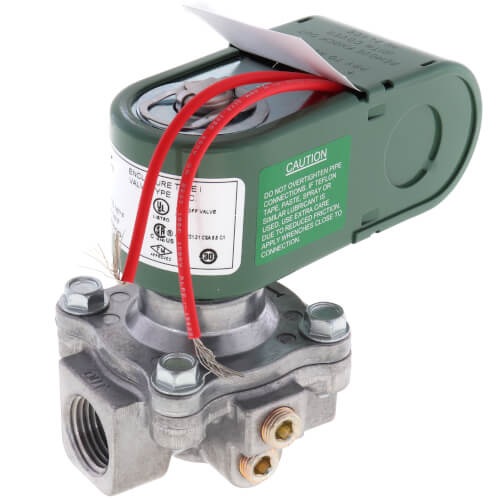

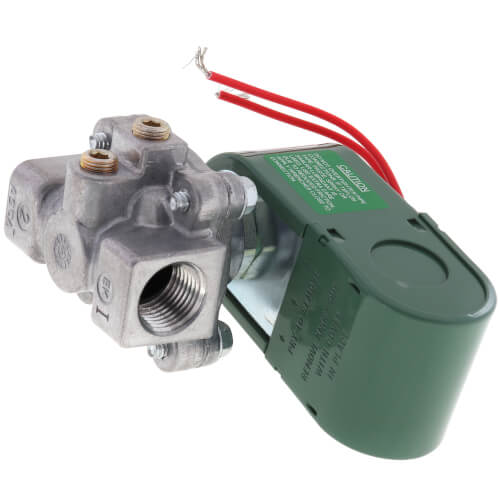

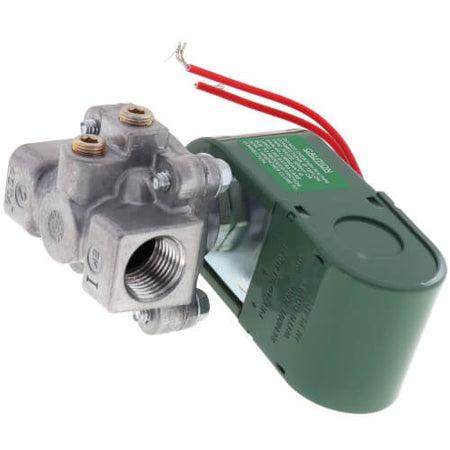

ASCO K3A442V | 1/2" 2 Way Normally Closed Low Pressure Gas Shutoff Valve, 120V (350,000 BTU)
Couldn't load pickup availability
Got questions? Ask an expert!
ASCO Valve's Fuel, Gas & Oil solenoid valves handle combustion system pilot & main line fuel shutoff & control needs. Our Fuel, Gas & Oil solenoid valves are available in 2-way normally closed, normally open, manual reset, and 3-way diversion. ASCO valves are available in brass, aluminum, and stainless steel. Features include junction box, pipe taps, visual indication, proof of closure, leading agency approvals, and pipe connections from 1/8" to 3". Most valves are rated for -40ºF service for outdoor installation in frigid climates.
Features
- 2-way normally closed operation
- Die-cast aluminum bodies
- For positive shutoff on pilot or main gas lines of commercial and industrial gas burners
- Valves provided with 1/8" NPT upstream and dowstream pipe tap with plug for routine testing
- Suitable for ambient temperatures up to 175°F
- Construction:
- Solenoid Enclosures:
- Standard: Type 1 General Purpose Junction Box Housing with two 7/8" knock-outs.
- Valve Response Time:
Specifications
| Brand | ASCO |
|---|---|
| MPN | K3A442V |
| Body | Aluminum |
| Seals and disc | NBR |
| Washer | 302 Stainless Steel |
| Core tube | 305 Stainless Steel |
| Core and plugnut | 430F Stainless Steel |
| Core guide | CA |
| Springs | 302F Stainless Steel |
| Shading coil | Copper |
| Body gasket | Cork |
| Pipe plug | Zinc-Plated Steel |
| Opening time | Less than 1 second |
| Closing time | Less than 1 second |
| Max pressure (PSI) | 0.5 |
| Application | Plumbing |
| Size | 1/2" |
| Connection type | Threaded |
| Voltage | 120v |
| Flow capacity (Cv) | 6 |
| Body pattern | 2-Way |
| Wattage | 10.5 |
| Material | Aluminum |
| Flow type | High Flow |
| Power requirements | 120/60 VAC |
| Capacity | 350000 BTU |
| Ambient temperature | 32°F to 104°F (DC) 32°F to 125°F (AC) |
- SKU ASCOK3A442V
