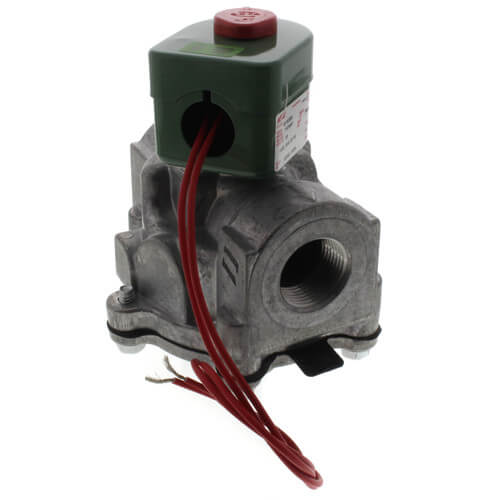

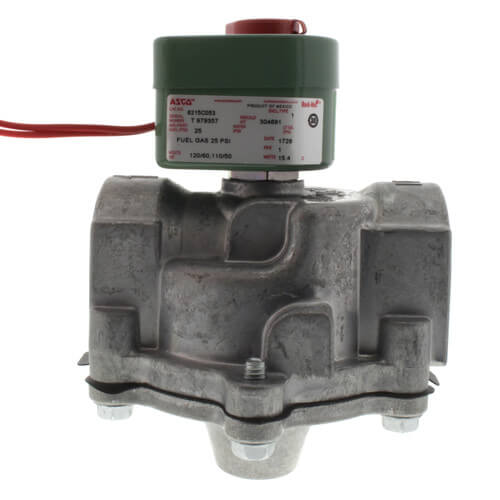

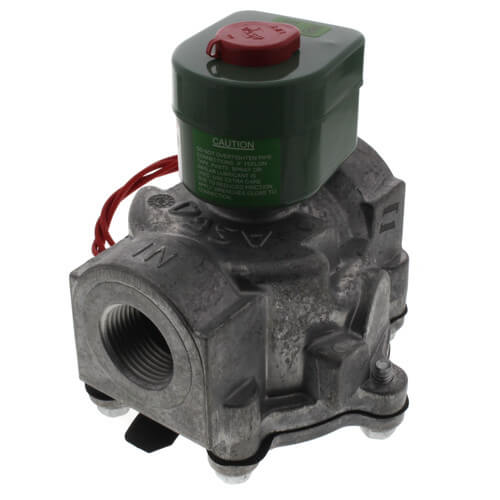

ASCO 8215C53 | 1" NPT 2-Way Normally Open Solenoid Valve (120V)
Couldn't load pickup availability
Got questions? Ask an expert!
The ASCO 8215C53 is a lightweight, pilot-operated 1-inch threaded 2-way normally open solenoid valve designed specifically for high-flow air, inert gas, and vacuum service. Constructed with a durable yet cost-effective aluminum body, this 120V valve is ideal for plumbing and demanding low-pressure applications. It reliably operates within a 0 to 25 PSI range while delivering an impressive flow capacity of 22 Cv and a substantial heating capacity of 1,191,750 BTU.
Specifications
| Brand | ASCO |
|---|---|
| MPN | 8215C53 |
| Product type | Pilot Operated Solenoid Valve |
| Valve design | 2-Way, Normally Open |
| Pipe size | 1" (Threaded Connection) |
| Body material | Aluminum |
| Electrical specifications | 120V / 60 Hz AC |
| Flow capacity (Cv) | 22 (High Flow) |
| Heating capacity | 1,191,750 BTU |
| Maximum pressure | 25 PSI |
| Maximum temperature | 125°F |
| Ambient temperature range | 32°F to 125°F (AC) / 32°F to 104°F (DC) |
| Compatible media | Air, inert gas, and vacuum service |
- SKU ASCO8215C53
