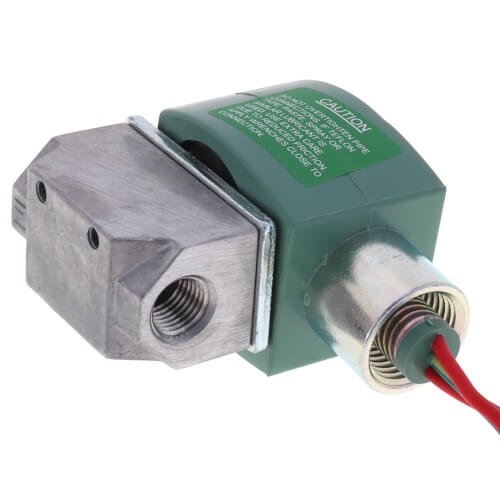

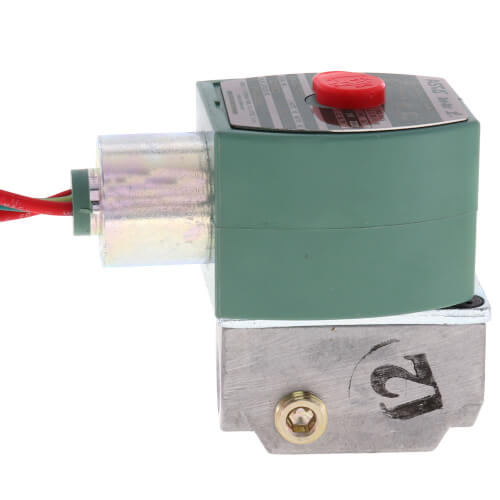

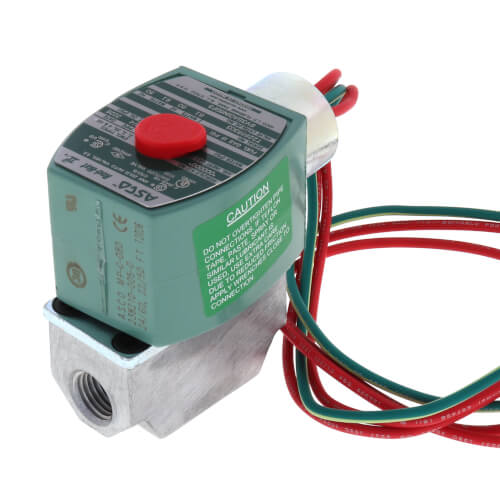

ASCO SV311A02N6BF5 | 1/4" 2-Way Normally Closed Direct Acting Pilot Gas Shutoff Valve (120V, 1.1 Cv)
Couldn't load pickup availability
Got questions? Ask an expert!
The ASCO 1/4" NPT 2-way normally closed gas shutoff valve is engineered specifically for the reliable pilot control of commercial and industrial gas burners. Featuring direct-lift operation and resilient soft seating, this 120V aluminum solenoid valve ensures a tight, secure shutoff for maximum safety. The unit is conveniently equipped with a 1/8" NPT downstream pipe tap and plug, enabling fast and easy routine testing for demanding combustion systems.
Specifications
| Brand | ASCO |
|---|---|
| MPN | SV311A02N6BF5 |
| Product type | Direct Acting Gas Shutoff Solenoid Valve |
| Valve design | 2-Way, Normally Closed |
| Pipe size | 1/4" NPT (Female Threaded Connection) |
| Electrical specifications | 120V (110/120V) / 6.1 Watts |
| Flow capacity (Cv) | 1.1 (High Flow) |
| Heating capacity | 59,000 BTU |
| Body material | Aluminum |
| Internal components | NBR seals and disc, 305 stainless steel core tube, 430F stainless steel core and plugnut, 17-7PH springs, copper shading coil, and zinc-plated steel pipe plug |
| Ambient temperature range | 32°F to 125°F (AC) / 32°F to 104°F (DC) |
| Maximum fluid temperature | 125°F (DC) |
| Key features | Direct lift operation with soft seating for a tight seal, plus a built-in 1/8" NPT downstream pipe tap with plug for routine testing |
