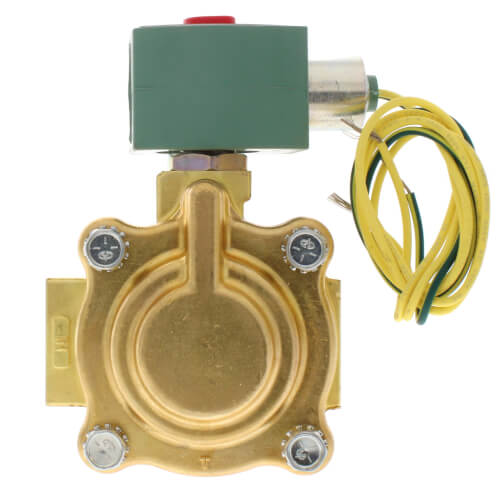

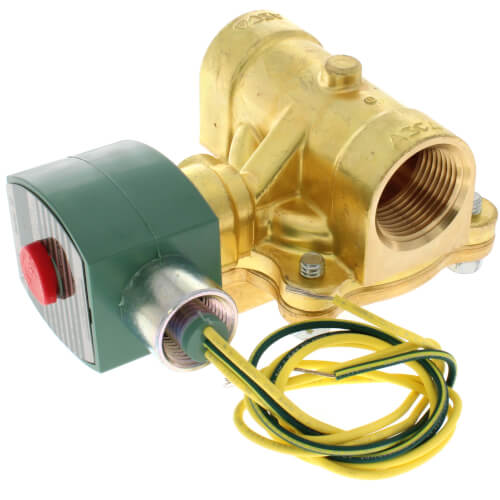

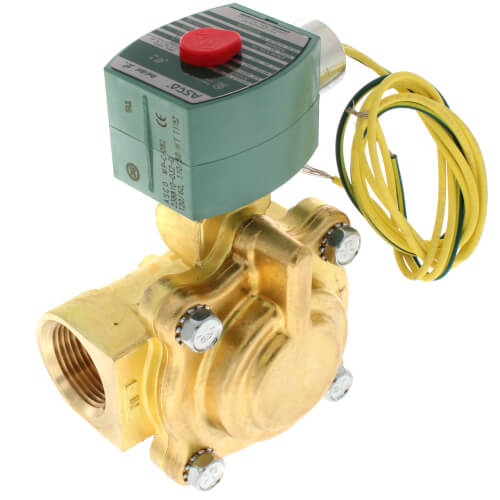

ASCO 8220G025 1" NPT 2-Way Pilot Operated Solenoid Valve (120V)
Couldn't load pickup availability
Got questions? Ask an expert!
The ASCO 8220G025 is a heavy-duty, pilot-operated 1-inch NPT 2-way solenoid valve engineered to reliably manage high-temperature fluids in demanding environments. Constructed with a durable brass body, stainless steel pistons and seats, and resilient PTFE and EPDM discs, this 120V valve is equipped with high-temperature coils to ensure maximum longevity and performance. Delivering an impressive high flow capacity of 13.5 Cv, it is an ideal solution for rigorous industrial applications, including commercial laundries, molding, sterilizers, autoclaves, and steam atomization.
- Manufacturer: ASCO
- Part Number: 8220G025
- Product Type: Pilot Operated Solenoid Valve
- Valve Design: 2-Way
- Pipe Size: 1" NPT (Threaded Connection)
- Body Material: Brass
- Internal Components: Stainless steel pistons and seats with PTFE and EPDM discs
- Electrical Specifications: 120V / 60 Hz / 10.1 Watts (Equipped with high-temperature coils)
- Flow Capacity (Cv): 13.5 (High Flow)
- Maximum Temperature: 125°F
- Applications: Commercial laundries, molding, sterilizers, steam atomization, and autoclaves
- SKU ASCO8220G025
