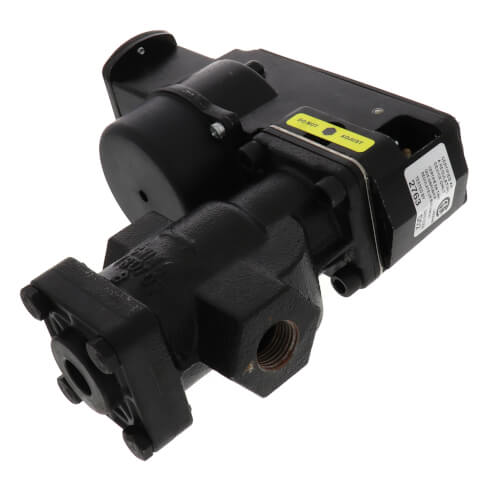

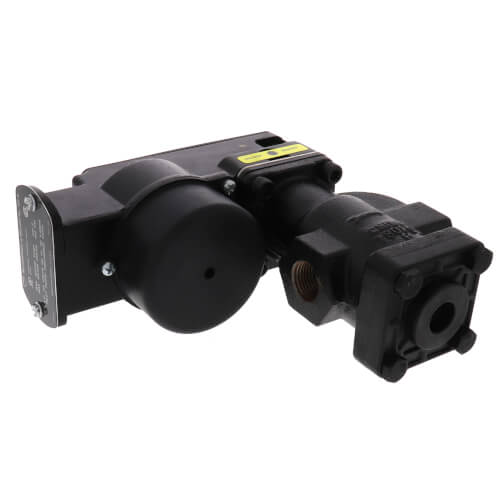

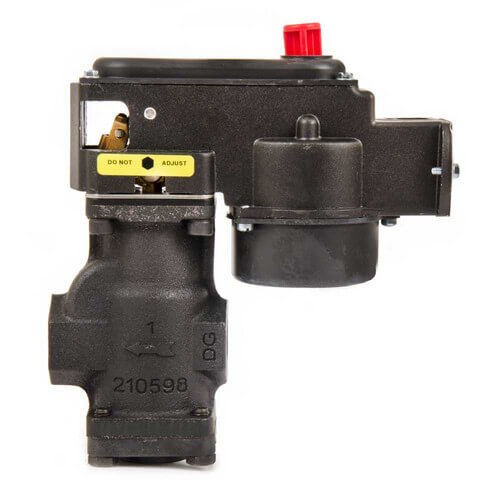

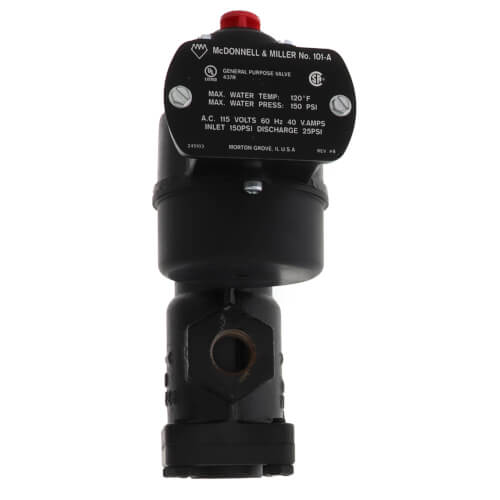

McDonnell & Miller 169400 | 101A-120V, 120V Electric Water Feeder
Regular price
$636.75
Couldn't load pickup availability
100% Secure Payments
Industry Leading Quality & Service
Got questions? Ask an expert!
Description
–
Overview:
- For low pressure steam boilers with cold water feed
- Eliminates necessity to manually add water to the boiler
- Can be used with mechanical or electronic low water cut-off controls
- Quick-change replaceable cartridge valve and strainer
- Manual feed button
- Model 101-A features a 120 VAC solenoid
- Model 101-A-24 features a 24 VAC solenoid and a separate 50 VA transformer
- Maximum water supply pressure 150 psi (10.5 kg/cm sq.)
- Maximum boiler pressure 25 psi (1.8 kg/cm sq.)
- Maximum inlet water temperature 120 degrees F (49 degrees C)
- Maximum power consumption: 40 VA at 24 VAC, 40 VA at 120 VAC
Specs
–
| Application: |
Steam Boilers |
|---|---|
| Type: |
Electronic |
| Max Pressure (PSI): |
150 |
| Max Vessel Pressure: |
25 psi |
| Reset Type: |
Automatic |
| Max Inlet Water Temp (F): |
120°F |
| Voltage: |
120v |
| Height: |
7.5625" |
| Width (Inches): |
6-7/8" |
| Feed Rate: |
1 |
| Max Ambient Temp (°F): |
100°F |
| Max Power Consumption: |
40 VA |
| Connection Type: |
Threaded |
| Size: |
1/2" |
Features
- For low pressure steam boilers with cold water feed
- Eliminates necessity to manually add water to the boiler
- Can be used with mechanical or electronic low water cut-off controls
- Quick-change replaceable cartridge valve and strainer
- Manual feed button
- Model 101-A features a 120 VAC solenoid
- Model 101-A-24 features a 24 VAC solenoid and a separate 50 VA transformer
- Maximum water supply pressure 150 psi (10.5 kg/cm sq.)
- Maximum boiler pressure 25 psi (1.8 kg/cm sq.)
- Maximum inlet water temperature 120 degrees F (49 degrees C)
Specifications
| Brand | McDonnell & Miller |
|---|---|
| MPN | 169400 |
| Maximum power consumption | 40 VA at 24 VAC, 40 VA at 120 VAC |
| Application | Steam Boilers |
| Type | Electronic |
| Max pressure (PSI) | 150 |
| Max vessel pressure | 25 psi |
| Reset type | Automatic |
| Max inlet water temp (F) | 120°F |
| Voltage | 120v |
| Height | 7.5625" |
| Width (inches) | 6-7/8" |
| Feed rate | 1 |
| Max ambient temp (°f) | 100°F |
| Max power consumption | 40 VA |
| Connection type | Threaded |
| Size | 1/2" |
- SKU MM101A-120
