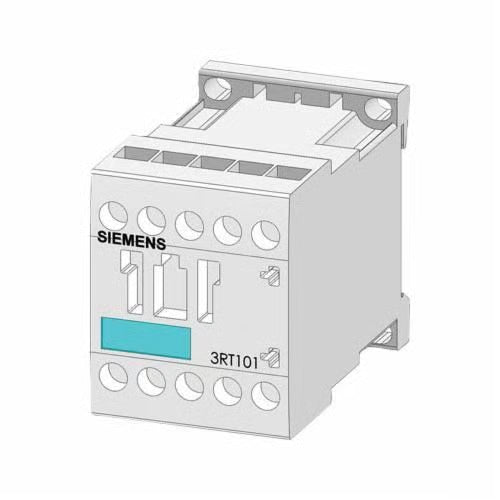

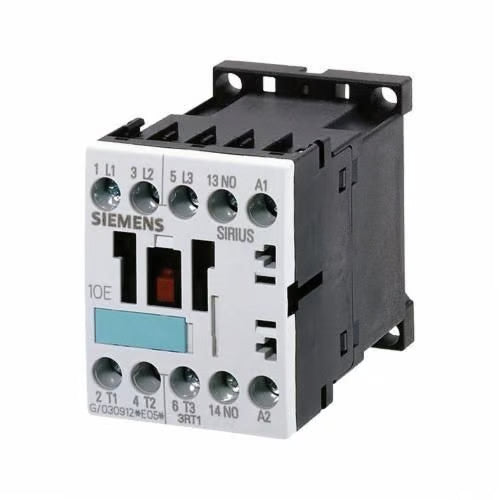

Siemens 3RT1017-1AK61 | Sirius 3RT1017-1AK61 3-Phase Non-Reversing Standard IEC Contactor, 120 VAC Coil, 1NO Contact, 3 Poles
Regular price
$94.00
Couldn't load pickup availability
100% Secure Payments
Industry Leading Quality & Service
Got questions? Ask an expert!
Features
- Without auxiliaries and suppression
- Design of the fuse link, fuse gL/gG, 10 A auxiliary, fuse gL/gG, 35 A main
- 30000000 of the contactor/typical, 10000000 of the contactor with added auxiliary switch block/typical, 5000000 of the contactor with added electronics compatible auxiliary switch block/typical 1/hr
Specifications
| Brand | Siemens |
|---|---|
| MPN | 3RT1017-1AK61 |
| Frequency rating | 60 Hz |
| Mounting type | DIN Rail/Panel |
| Number of auxiliary contacts | 1NO |
| Number of poles | 3 |
| Operating temperature | -25 to 60 deg C |
| Terminal | Screw |
| Terminal type | Screw |
| Wattage | 3 kW |
| Coil voltage | 120 VAC |
| Connection type | Screw |
| Contact configuration | 1NO |
| Enclosure type | IP20 |
| EAN/UCC-13 | 4011209345904 |

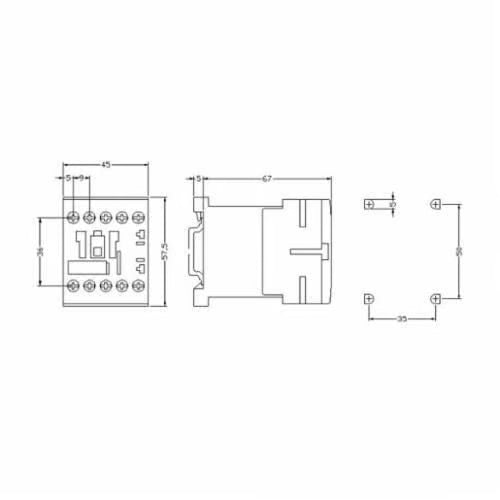

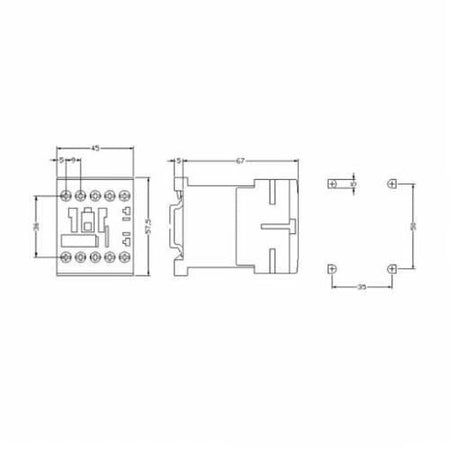

| Dimensions | 57-1/2 mm H x 45 mm W x 72 mm D |
| Standards and approvals | UL File No. E31519 (Vol 11 Sec 2) |
| Application | For switching motor applications |
| Type | 3-Phase Non-Reversing Standard |
| Size | SZ S00 |
| Power factor | 0.77 Closing, 0.27 Holding |
| Operating cycles | 30000000 Cycles Contactor/Typical |
| Coil power rating | 31.7 VA Pickup, 5.1 VA Holding |
- SKU SIEMAN3RT1017-1AK61
