Description

–

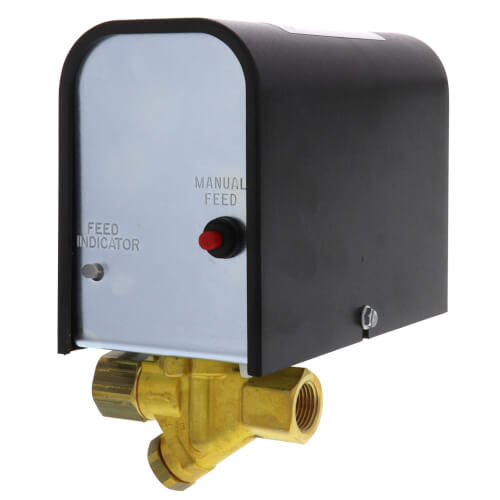

McDonnell & Miller Universal Water Feeders are ideal for use in residential or small commercial applications. Versatile and compact, they are easily installed to operate with either a probe- or float-type low water cut-off. The feeders are always ready to add water when given the signal from the LWCO - no need to manually add water. And they protect the boiler from a dry fire condition by maintaining a safe minimum water level in the boiler should a system leak occur. They monitor the water level, maintaining a safe minimum and allow the boiler water line to rise and fall naturally through its normal operating range.

Features
  • Multi-color LED
  • Four position on/off dip switch
  • Water supply pressures to 150 psi; boiler pressures to 15 psi
  • 3/8" NPT connection

Specs

–
Application:

Steam Boilers
Type:

Electronic

Float-Style
Max Pressure (PSI):

150
Max Vessel Pressure:

15 psi
Voltage:

24V
Max Inlet Water Temp (F):

120°F
Max Ambient Temp (°F):

100°F
Height:

6.25"
Width (Inches):

2-7/8"
Power Consumption:

15 VA
Feed Rate:

5
Connection Type:

Threaded
Size:

3/8"

McDonnell & Miller Universal Water Feeders are ideal for use in residential or small commercial applications. Versatile and compact, they are easily installed to operate with either a probe- or float-type low water cut-off. The feeders are always ready to add water when given the signal from the LWCO - no need to manually add water. And they protect the boiler from a dry fire condition by maintaining a safe minimum water level in the boiler should a system leak occur. They monitor the water level, maintaining a safe minimum and allow the boiler water line to rise and fall naturally through its normal operating range.

Features

  • Multi-color LED
  • Four position on/off dip switch
  • Water supply pressures to 150 psi; boiler pressures to 15 psi
  • 3/8" NPT connection

Specifications

Brand McDonnell & Miller
MPN 169550
Application Steam Boilers
Type Electronic
Float-Style
Max pressure (PSI) 150
Max vessel pressure 15 psi
Voltage 24V
Max inlet water temp (F) 120°F
Max ambient temp (°f) 100°F
Height 6.25"
Width (inches) 2-7/8"
Power consumption 15 VA
Feed rate 5
Connection type Threaded
Size 3/8"
