ASCO V710LBS | V710(B) 3" 2-Way Normally Closed Quick Opening Hydramotor Valve Body (160 Cv)
Couldn't load pickup availability
Got questions? Ask an expert!

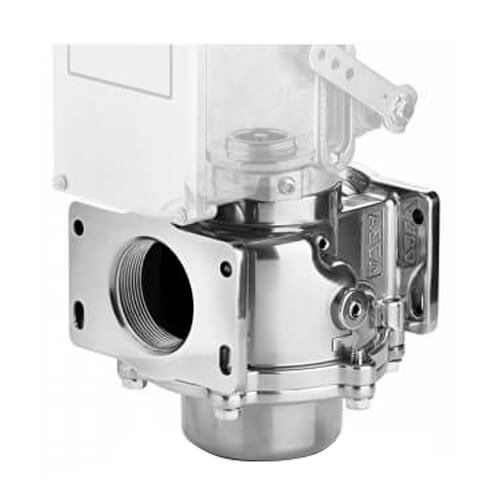

The ASCO V710(B) is a 3-inch, 2-way normally closed, push-to-open valve body engineered specifically for the reliable on/off control of commercial and industrial gas burners. Designed exclusively for use with AH(E) Hydramotor actuators, this valve opens when the stem is depressed by the actuator and utilizes an internal return spring to securely close when the system is de-energized. Featuring quick-opening trim for applications not requiring metered flow control, it mounts in any position directly to the actuator and includes upstream and downstream pipe taps with plugs for convenient routine testing.
Specifications
| Brand | ASCO |
|---|---|
| MPN | V710LBS |
| Model/series | V710(B) |
| Product type | Hydramotor Valve Body |
| Trim type | Quick Opening (Standard) |
| Valve design | 2-Way, Normally Closed |
| Pipe size | 3" |
| Flow capacity (Cv) | 160 |
| Heating capacity | 8,627,300 BTU |
| Pressure differential | 15 PSI |
| Fluid temperature range | -40°F to 150°F |
| Compatibility | Designed exclusively for use with AH(E) Hydramotor actuators |
| Installation | Mounts in any position directly to the actuator; optional flange adapters are available for ease of installation and service |
- SKU ASCOV710LBS
