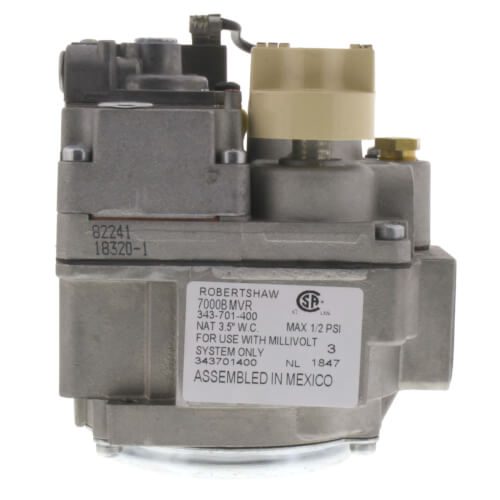

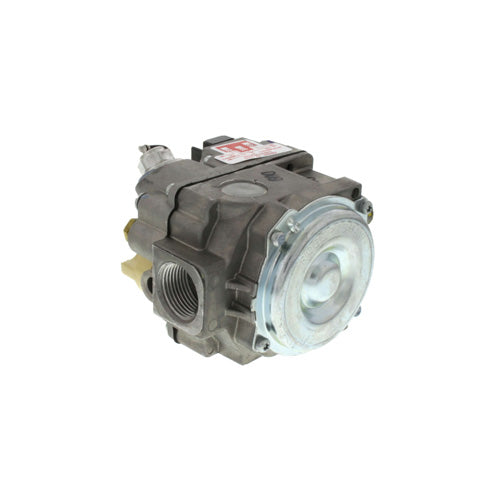

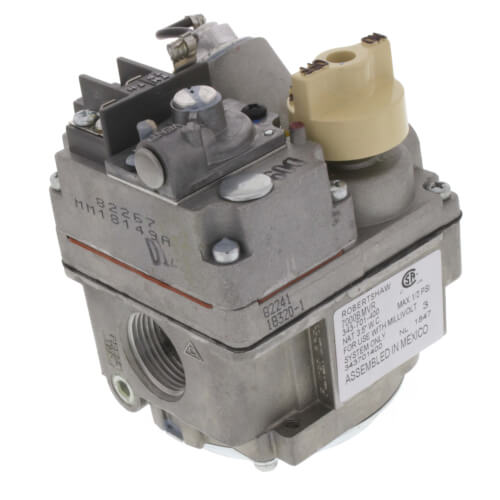

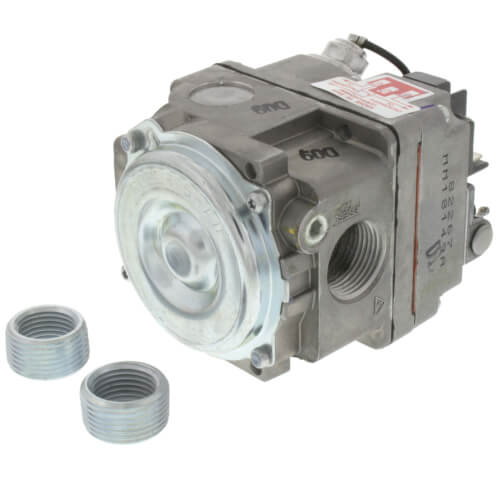

Robertshaw 700-506 | 3/4" x 3/4" Millivolt Combo Gas Valve (300,000)

In stock
SKU: ROB700-506
$179.00
100% Secure Payments
Industry Leading Quality & Service

Got questions? Ask an expert!

Email 516-382-1019

Description

–
The 700 millivolt gas valves are wall thermostat actuated combination gas valves. These controls combine a manual gas cock, automatic pilot safety valve and a millivolt operator. The automatic pilot safety is separate from the gas cock and provides gas shutoff in case of pilot outage. Regulated and non-regulated models are available (see ordering chart). Standard features include: pilot outlet, pilot gas filter and pilot adjusting key. VALVES CAN BE MOUNTED IN ANY POSITION EXCEPT UPSIDE DOWN. Consult ordering chart for individual control specifications.

Specs

–
Fuel Type:

Natural Gas
Inlet Size:

3/4"
Outlet Size:

3/4"
Side With Plugs:

Straight Thru
Pressure Reg Setting:

3.5" W.C. NAT. GAS
Capacity (BTU):

300000
Ignition Type:

Standing Pilot

The 700 millivolt gas valves are wall thermostat actuated combination gas valves. These controls combine a manual gas cock, automatic pilot safety valve and a millivolt operator. The automatic pilot safety is separate from the gas cock and provides gas shutoff in case of pilot outage. Regulated and non-regulated models are available (see ordering chart). Standard features include: pilot outlet, pilot gas filter and pilot adjusting key. VALVES CAN BE MOUNTED IN ANY POSITION EXCEPT UPSIDE DOWN. Consult ordering chart for individual control specifications.

Specifications

Brand Robertshaw
MPN 700-506
Fuel type Natural Gas
Inlet size 3/4"
Outlet size 3/4"
Side with plugs Straight Thru
Pressure reg setting 3.5" W.C. NAT. GAS
Capacity (BTU) 300000
Ignition type Standing Pilot
  • SKU ROB700-506
