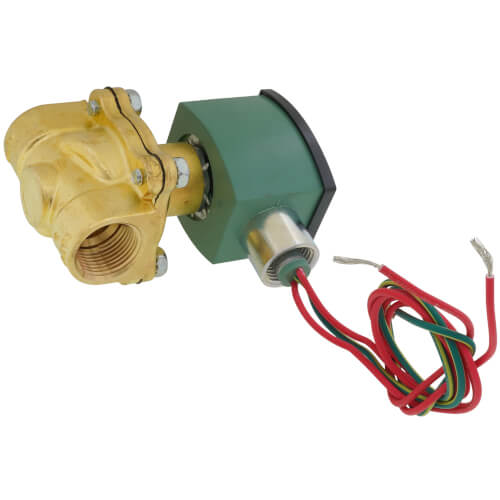

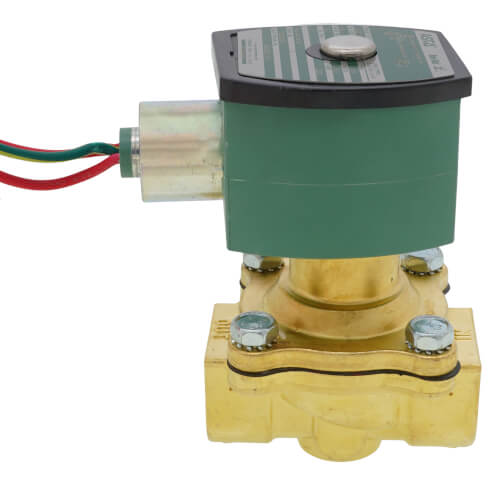

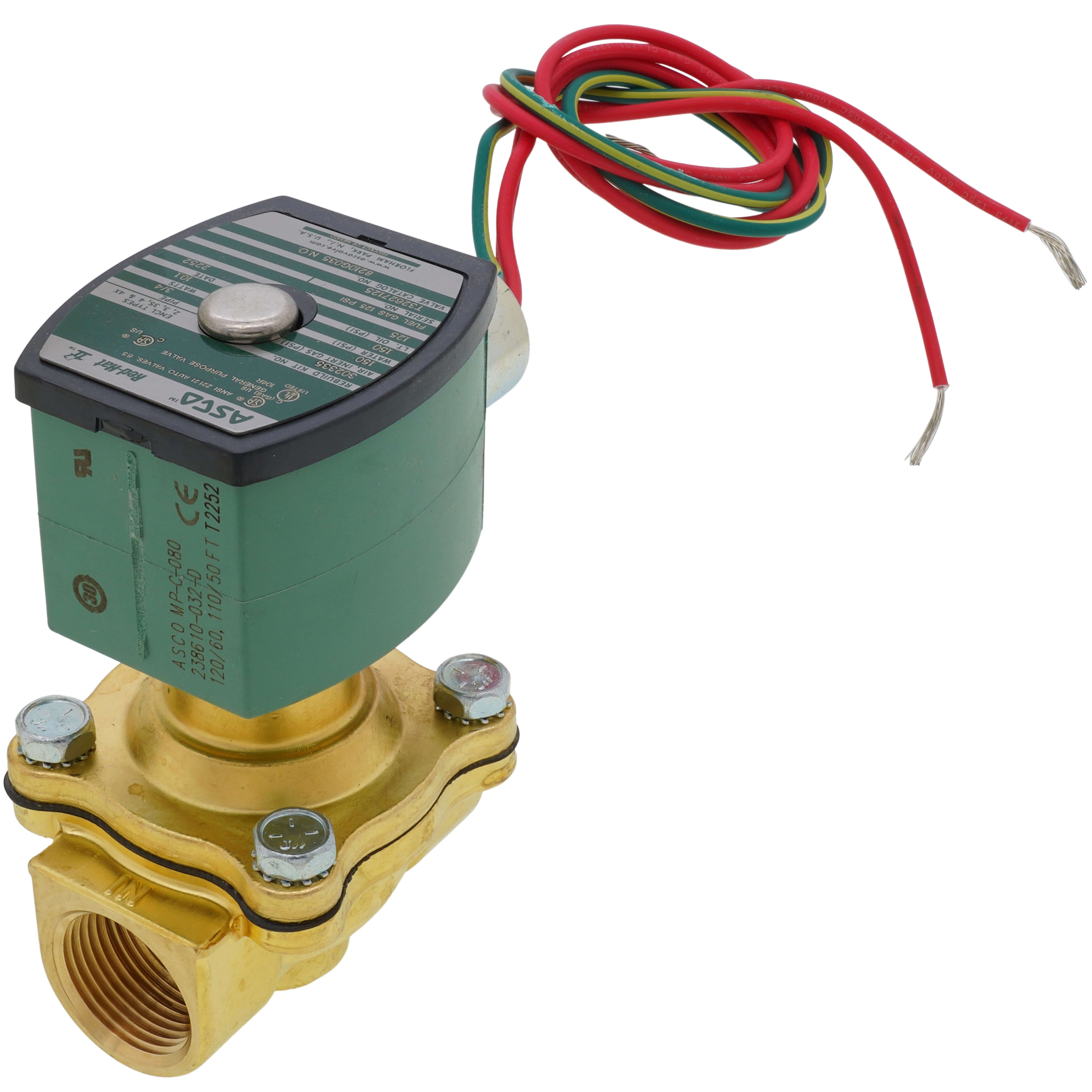

ASCO 8210G035 3/4" 2-Way Normally Open Solenoid Valve
Couldn't load pickup availability
Got questions? Ask an expert!
The ASCO 8210G035 is a versatile 3/4-inch threaded 2-way normally open solenoid valve engineered for high-flow liquid, corrosive, and air/inert gas service. Featuring a durable brass body with resilient internal materials, this valve ensures an exceptionally long service life and minimal internal leakage. Capable of safely handling maximum AC pressures up to 150 PSI for air and water, and 125 PSI for light oil, it is a highly dependable solution for demanding industrial applications such as car washes, air compressors, industrial water control systems, pumps, and commercial laundry equipment.
- Manufacturer: ASCO
- Part Number: 8210G035
- Product Type: Solenoid Valve
- Valve Design: 2-Way, Normally Open
- Pipe Size: 3/4" (Threaded Connection)
- Electrical Specifications: Available in 120V and 24V configurations (10.1 Watts)
- Flow Capacity (Cv): 5.5 (High Flow)
- Maximum AC Air Pressure: 150 PSI
- Maximum AC Water Pressure: 150 PSI
- Maximum AC Light Oil Pressure: 125 PSI
- Standard Enclosures: Watertight NEMA 4 and 4X (RedHat II Types 1, 2, 3, 3S, 4, and 4X) / Type I (RedHat)
- Optional Enclosures: Explosion-proof and Watertight options available (e.g., Types 3, 3S, 4, 4X, 6, 6P, 7, and 9)
- Compatible Media: Liquid, corrosive, and air/inert gas service
- Key Applications: Car wash, laundry equipment, air compressors, industrial water control, and pumps
- SKU ASCO8210G035
