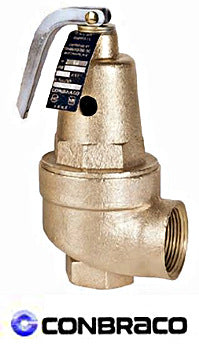

Conbraco/Apollo 10-614 | Model 10-617 Hot Water Relief Valve 1½" x 2"

The 10-617 Series Section IV ASME hot water boiler safety relief valves are designed for high-capacity heating systems valves with female inlet,expanded or standard female outlet. Equipped with an elevated seat for drainage of water away from seat area. Entire pressure range is National Board capacity certified. Body constructed of ASTM B584 Bronze material with an alloy Steel, plated spring and silicone seat. Ranging in size from 3/4" to 2".

Features

• * ASME Section IV Certified Capacity
• * 30-150 psig Set Pressure @ 250 ° F max
• * Corrosion Resistant Construction
• * PTFE coated O-ring for positive seal
• * Diaphragm Isolated Spring Chamber
• * High Capacity Option
• * Directive 97/23/EC (PED) Compliance
• * MADE IN THE USA
• * SKU: 10-617
