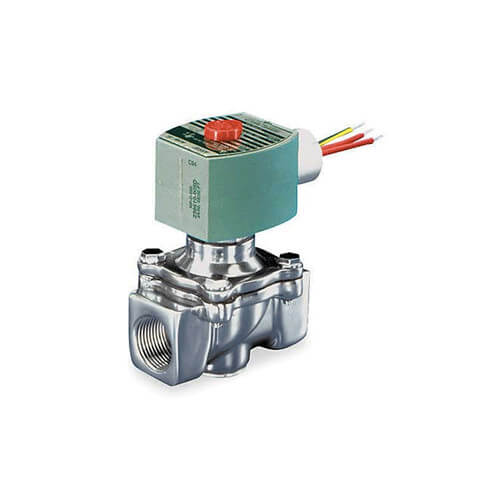

ASCO 8040H8 3/8" Normally Closed Gas Shutoff Valve
Couldn't load pickup availability
Got questions? Ask an expert!
The ASCO 8040H8 is a highly responsive 3/8-inch 2-way normally closed gas shutoff valve designed for the pilot or main control of commercial and industrial gas burners. Constructed with a durable aluminum body, it features a 1.2 Cv flow capacity—safely handling up to 64,400 BTU—and comes equipped with 1/8-inch NPT upstream and downstream pipe taps for routine testing. Operating on a standard 120V system with a rapid response time of under one second, it can be conveniently mounted in any position for both double block and vent gas applications. Please note: The ASCO 8040H8 was discontinued by the manufacturer on October 20, 2013. The direct and exact replacement, featuring no modifications from the original, is the ASCO 8040H008.
- Manufacturer: ASCO (RedHat)
- Original Part Number: 8040H8
- Direct Replacement Part Number: 8040H008
- Product Status: Discontinued (as of October 20, 2013)
- Product Type: Gas Shutoff Valve
- Valve Design: 2-Way, Normally Closed
- Pipe Size: 3/8"
- Body Material: Aluminum
- Electrical Specifications: 120V / 6.1 Watts
- Flow Capacity (Cv): 1.2 (High Flow)
- Gas Capacity: 64,400 BTU
- Fluid Temperature Range: -40°F to 125°F
- Response Time: Opening and closing times are both less than 1 second
- Enclosure Type: NEMA 4 and NEMA 4X
- Testing Features: Provided with 1/8" NPT upstream and downstream pipe taps (with plugs)
- Key Applications: Gas pilot or main control of commercial and industrial gas burners
- SKU ASCO8040H8
