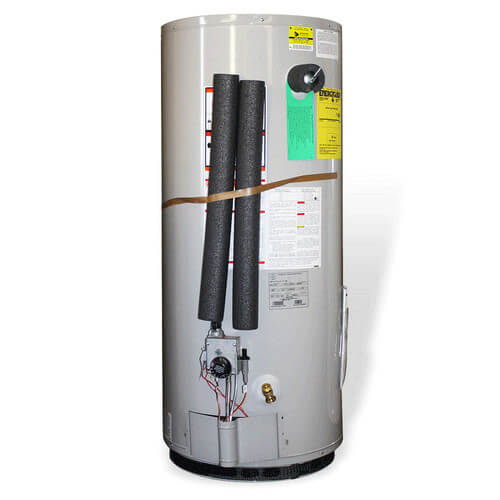

A.O. Smith XCV-40 ProMax 40-Gallon 40,000 BTU Tall Natural Gas Water Heater
Couldn't load pickup availability
Got questions? Ask an expert!
IMPORTANT NOTE: This product was officially discontinued by the manufacturer on June 13, 2015.
The A.O. Smith ProMax Tall 40-Gallon Residential Natural Gas Water Heater (XCV-40) is an economical yet exceptional performer designed perfectly for households of 2 to 3 people. Equipped with advanced C3 technology and an eco-friendly burner, it delivers reliable hot water output while maintaining reduced emissions and excellent long-term durability.
- Model Number: XCV-40
- Capacity: 40 Gallons (Tall Configuration)
- Fuel Type: Natural Gas (40,000 BTU Input)
- Household Size: Ideal for 2-3 person households
- Dimensions & Weight: 61.75" Height x 18" Diameter x 18" Depth; weighs 138 lbs
- Performance Metrics: 70-gallon first-hour delivery, 41 GPH recovery at 90°F rise, 0.59 Energy Factor, and R-8 insulation value
- Connections: 3/4" water connection, 1/2" gas connection, and accommodates 3" or 4" vent sizes
- Burner Technology: Patented "Green Choice" gas burner reduces NOx emissions by up to 33%, complying with Southern California and Texas requirements
- Ignition: Push-button Piezo ignitor allows for fast and easy one-handed spark lighting
- Tank Protection: Features a Coregard magnesium anode rod and Permaglas glass coating to protect the solid steel tank from rust
- Sediment Reduction: Dynaclean PEX cross-linked polymer diffuser dip tube minimizes lime and sediment buildup to maximize hot water output
- Valves & Fittings: Includes external heat trap nipples, a durable, tamper-resistant brass drain valve, and a CSA-certified, ASME-rated T&P relief valve
- Warranty: Originally backed by a 10-Year Tank and 6-Year Parts Limited Warranty
- SKU AOSXCV40
