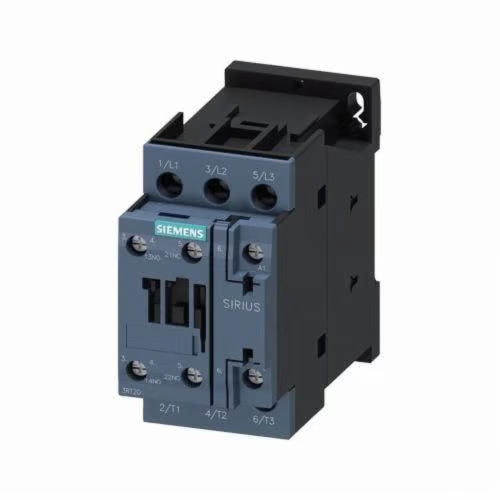

Siemens 3RT20251AK60 | Sirius 3RT20251AK60 Power Contactor, 120 VAC Coil, 16 a, 3NO Contact, 3 Poles
Regular price
$169.00
Couldn't load pickup availability
100% Secure Payments
Industry Leading Quality & Service
Got questions? Ask an expert!
These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring
Specifications
| Brand | Siemens |
|---|---|
| MPN | 3RT20251AK60 |
| Frequency rating | 50/60 Hz |
| Maximum load current | 16 A |
| Mounting type | DIN Rail/Snap-On/Threaded |
| Number of auxiliary contacts | 2 |
| Number of poles | 3 |
| Operating cycles | 10000000 Cycles |
| Operating temperature | -25 to 60 deg C |
| Power factor | 0.72/0.74 Closing, 0.25/0.28 Holding |
| Terminal | Screw |
| Terminal type | Screw |
| Application | Switching Motors Applications |
| Standards and approvals | CCC Certified, CSA Certified, CE Certified, C-Tick Approved, VDE Approved, UL Listed |
| Dimensions | 85 mm H x 45 mm W x 97 mm D |
| Coil power rating | 68/67 VA Pickup, 7.9/6.5 VA Holding |
| Coil voltage | 120 VAC |
| Contact configuration | 3NO |
| EAN/UCC-13 | 4011209832435 |
| Enclosure type | IP20 |
| Wattage | 7.5 kW |
| Size | Size S0 |
- SKU SIEMAN3RT20251AK60
