Beckett 7505D152MU | 7505P Genisys Cad Cell Oil Primary Control, 15 Sec Pre-Purge
Couldn't load pickup availability
Got questions? Ask an expert!
Product Update: This item has recently been updated by the manufacturer. Newer versions no longer include wire flag terminals, wire nuts, or a limit jumper. During this transition, you may receive either the previous or updated version based on current inventory.
IMPORTANT SAFETY WARNING: This product must be installed by a qualified and licensed contractor using properly calibrated combustion test equipment. Failure to adhere to this requirement may result in significant property damage, serious personal injury, or death.

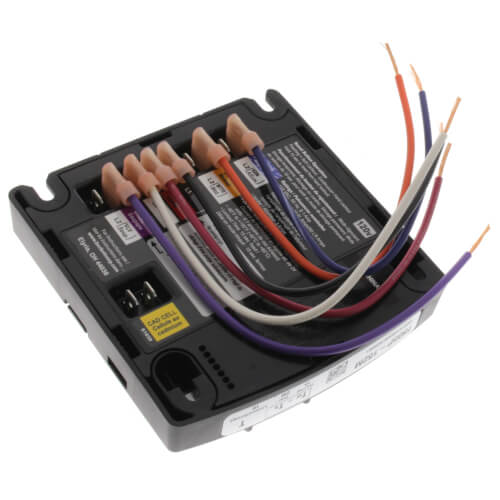

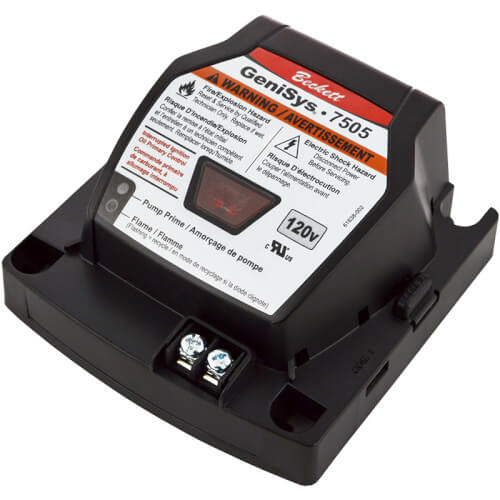

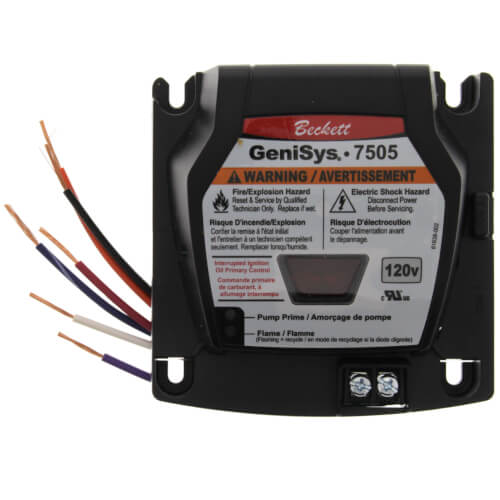

The Beckett 7505P (7505D152MU) GeniSys Advanced Burner Control is a 120 VAC primary safety control designed for residential and light commercial oil burners used in boiler, furnace, and water heater applications. This unit serves as a direct replacement for R7184P and R7184B controls on Beckett burners, operating alongside a suitable cad cell flame sensor to accurately control the oil burner motor, igniter, and optional solenoid valve.
Specifications
| Brand | Beckett |
|---|---|
| MPN | 7505D152MU |
| Product type | Cad Cell Oil Primary Control |
| Voltage | 120 VAC primary safety control with 24 VAC thermostat terminals (compatible with both mechanical and many power-stealing thermostats) |
| Timing settings | 15-second pre-purge, 2-minute post-purge, and 15-second lockout time (TFI) |
| Customizable programming | Pre-time, post-time, and cycle history can be easily programmed and read using the GeniSys Contractor Tool 52082U |
| Replacements | Direct replacement for Honeywell R7184P and R7184B controls (Note: The 7505A0000 model replaces the Honeywell R8184G) |

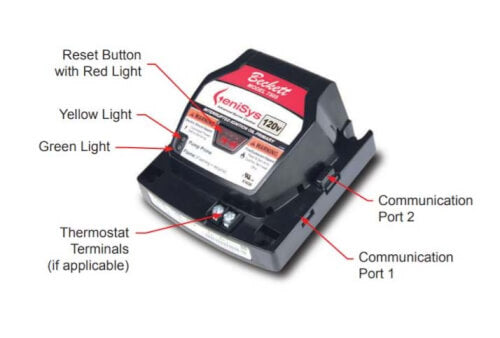

| Diagnostics & monitoring | Features three status lights for easy system monitoring and diagnostics, plus two communication ports for adding alarm contacts and the programming tool |
| Safety & protection | Water-resistant design, welded relay protection with redundant motor relays, limited reset, and limited recycle |
| Ignition | Capable of providing interrupted or intermittent duty ignition |
| Maintenance | Built-in Technician Pump Prime mode for easier, safer servicing |
| Warranty | Backed by a 5-Year Warranty |
- SKU BECK7505D152MU
