Asco HV216 1-1/2" Normally Closed Aluminum Gas Shut-Off Solenoid Valve (150 PSI)
Couldn't load pickup availability
Got questions? Ask an expert!

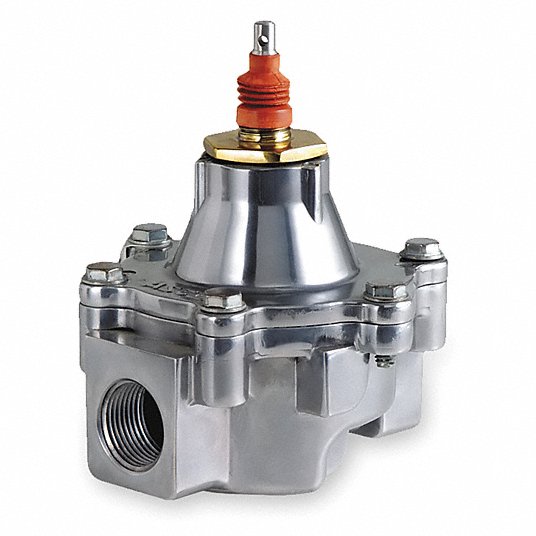

The ASCO HV216 (Model HV216585004) is a heavy-duty, cable-controlled gas shutoff valve designed specifically to manage the flow of gas in industrial, institutional, and commercial kitchens. Constructed with a durable aluminum body, this 2-way, normally closed (NC) valve is mechanically held open by a cable and immediately shuts off the gas supply once the cable is released, providing critical safety and a rapid response in commercial environments.
- Manufacturer: ASCO
- Model Number: HV216585004 (Item Number: 2LBH2)
- Product Type: Cable Controlled Gas Shutoff Valve
- Valve Design & Configuration: 2-Way, Normally Closed (NC) / Cable Release to Close
- Pipe Size: 1-1/2"
- Orifice Diameter: 1-5/8"
- Body Material: Aluminum
- Internal Components: 305 stainless steel tube, 302 stainless steel spring, and Buna-N seals and disc
- Pressure Differential: 0 to 150 PSIG
- Cv Flow Factor: 38
- Maximum Media Temperature: 132°F
- Dimensions: 7-3/16" Height × 5-3/8" Width
- Certifications: UL Component Listed
- SKU ASCOHV216585-4
