Bell & Gossett Series e-80 Pump, 3" x 3" x 7C, 25HP, 3550 RPM, 3PH, ODP
Couldn't load pickup availability
Got questions? Ask an expert!

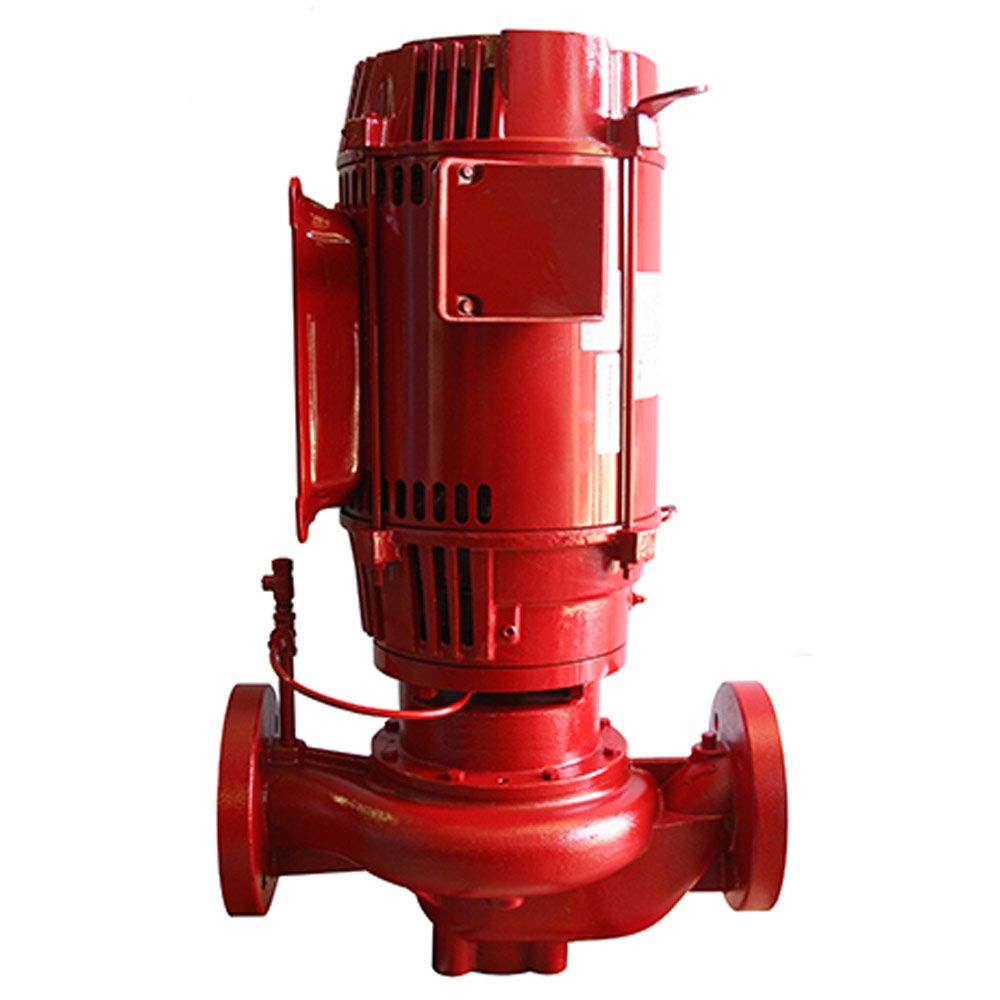

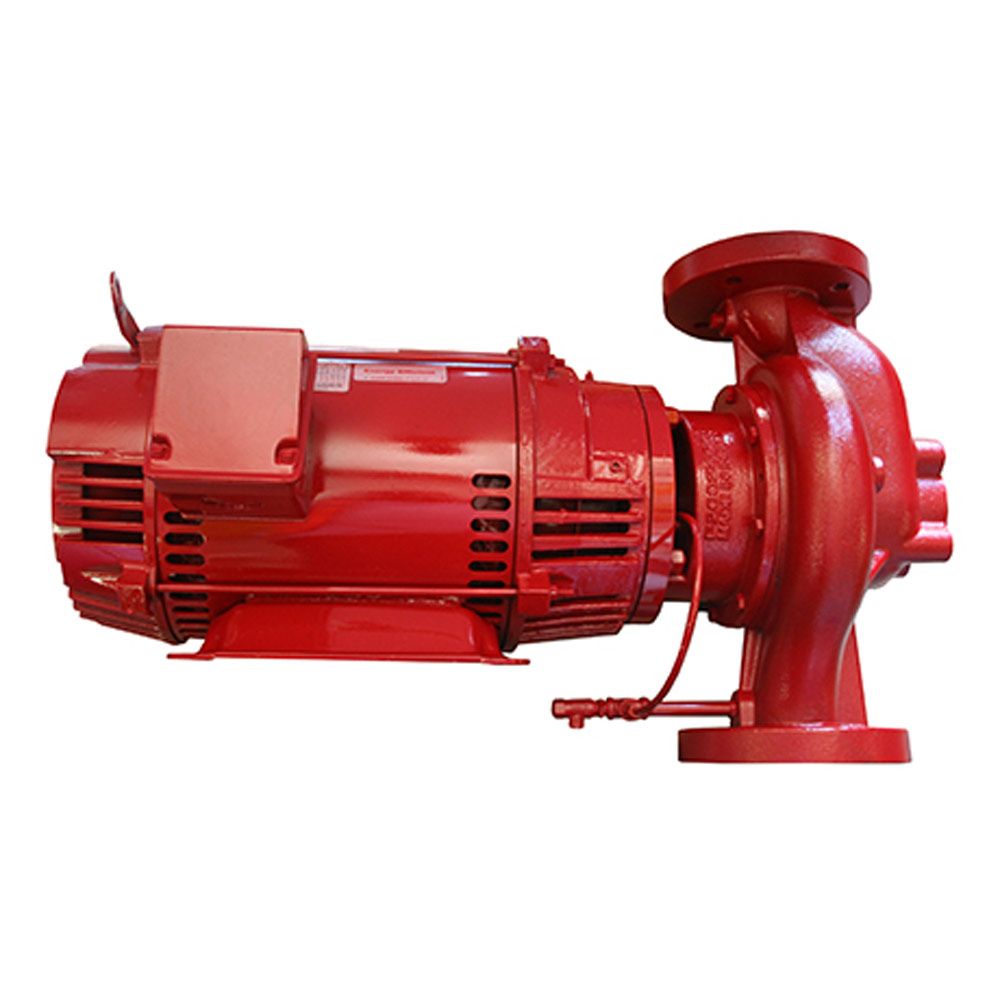

The Bell & Gossett Series e-80 is a heavy-duty, high-efficiency, close-coupled pump designed for versatile horizontal or vertical in-line mounting. Engineered for demanding industrial and commercial HVAC systems, this 3 x 3 x 7C model features a durable cast iron volute construction rated for 175 psi working pressure. Maintenance is simplified by its back pull-out design, allowing for single-technician service. The unit ensures long-lasting, quiet, and vibration-free performance through an ANSI/HI grade G6.3 balanced stainless steel impeller and an internally flushed mechanical seal with an armored flush line for optimal cooling and lubrication.
- Manufacturer: Bell & Gossett (B&G)
- Pump Series: Series e-80 (Replaces legacy Series 80)
- Pump Size: 3" x 3" x 7C
- Motor Power: 25 HP
- Speed: 3550 RPM
- Phase: 3-Phase
- Motor Enclosure: DPPE (ODP)
- Construction: Cast iron volute, stainless steel impeller
- Working Pressure: 175 psi
- Key Features: Internally flushed mechanical seal with anti-vortex baffles, armored flush line, back pull-out design for easy maintenance
- SKU BG80 2.5X7HP3
