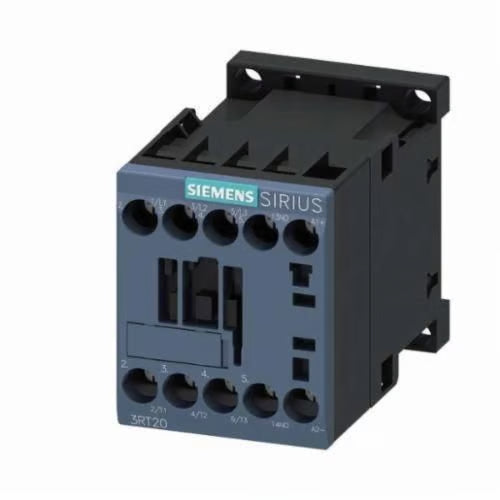

Siemens 3RT20161AK61 | Sirius 3RT20161AK61 Power Contactor, 110/120 VAC Coil, 9 a, 1NO Contact, 3 Poles
Regular price
$135.00
Couldn't load pickup availability
100% Secure Payments
Industry Leading Quality & Service
Got questions? Ask an expert!
Features
- These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring
- 3-phase
Specifications
| Brand | Siemens |
|---|---|
| MPN | 3RT20161AK61 |
| Frequency rating | 50/60 Hz |
| Mounting type | DIN Rail/Snap-On/Threaded |
| Number of poles | 3 |
| Operating cycles | 30000000 Cycles |
| Operating temperature | -25 to 60 deg C |
| Size | Size S00 |
| Terminal | Screw |
| Terminal type | Screw |
| Wattage | 4 kW |
| Application | Switching Motors Applications |
| Standards and approvals | CSA Certified, CE Certified, UL Listed, EAC Approved, CAC Compliant, GOST Certified, EG-KONF Approved, IEC 60947-5-1 |
| Coil power rating | 26.4 VA Pickup, 4.4 VA Holding |
| Coil voltage | 110/120 VAC |
| Contact configuration | 1NO |
| Contact rating | 9 A at 400 VAC |
| Enclosure type | IP20 |
| Power factor | 0.81 Closing, 0.24 Holding |
| Number of auxiliary contacts | 1 |
| Maximum load current | 12/31/1899 9:00:00 AM |
| EAN/UCC-13 | 4011209828209 |

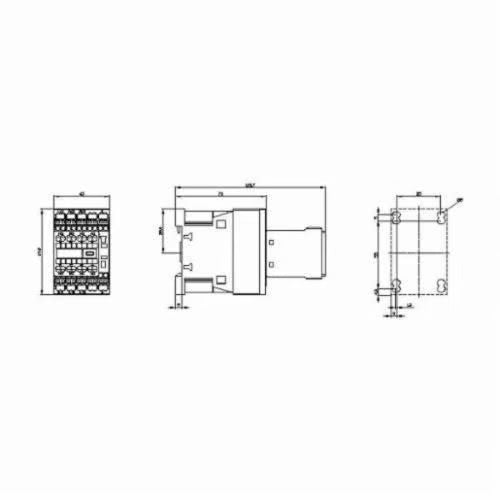

| Dimensions | 57.5 mm H x 45 mm W x 73 mm D |
- SKU SIEMAN3RT20161AK61
