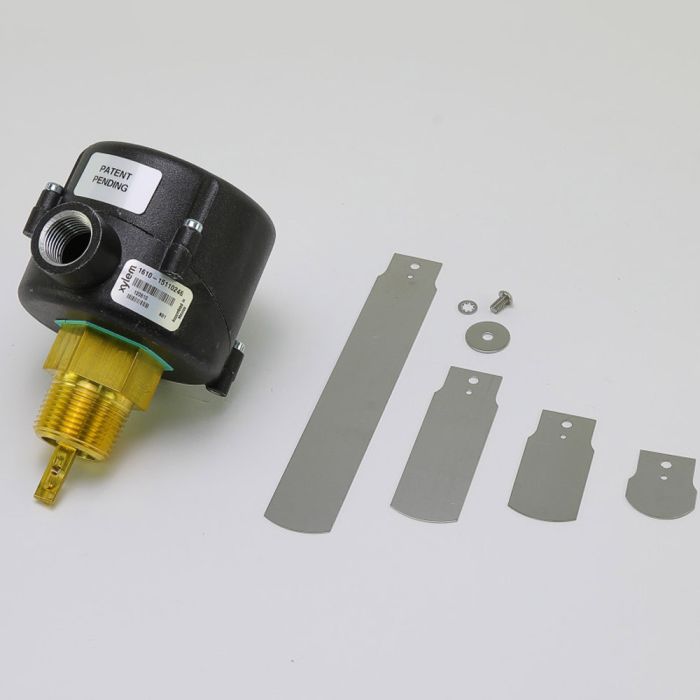

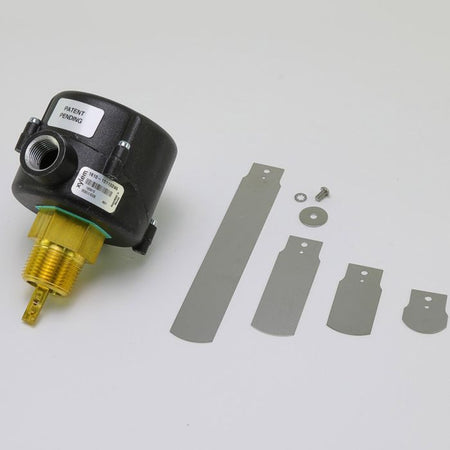

McDonnell & Miller 120610 | Liquid Flow Switch with Paddles
Couldn't load pickup availability
Got questions? Ask an expert!
McDonnell & Miller model number FS254 is a 120 volt, single pole, double throw, snap liquid flow switch for starting and stopping electrical equipment such as alarms, motors, and automatic burners. This switch features a sensitivity adjustment screw for easy flow adjustment, 1" MIP horizontal configuration, NEMA 4, a maximum temperature of 250°F, and a 160 psi operating pressure.
Specifications
| Brand | McDonnell & Miller |
|---|---|
| MPN | 120610 |
| Model | FS254 |
| Application | Liquid Flow |
| Enclosure | NEMA 1 |
| Voltage | 120V, 240V |
| Connection size | 1" |
| Control connection | NPT |
| Max pressure | 160 psi |
| Max temp | 300°F |
| Max velocity | 10 ft/sec |
| Min temp | 32°F |
| UPC | 751875206102 |
| Weight (lb) | 2.53 |
| Dimensions (L × W × H) | 7.4" x 5.05" x 4.45" |
- SKU MMFS254
