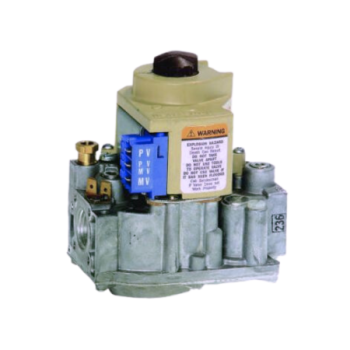

Honeywell VR8204A2175 | Natural Gas Valve 24 V 3-1/2" W.c. 1/2" NPT
Couldn't load pickup availability
Got questions? Ask an expert!
The Honeywell VR8204A2175 is a single-stage gas valve with a standard opening and 1/2” NPT connection. This device has a 3.5" W.C. regulator setting and operates with 24V at 60 Hz power supply.
The gas valve control features a safety shutoff, manual valve, two automatic operators, pressure regulator, pilot adjustment screw, and conduit cover. This component also has a lite-rite (off-pilot-on) lighting sequence.
The VR8204A2175 is used in gas-fired and intermittent pilot appliances. Suitable for use with S860D, S8610, S86F/H, S8600F/H, and S90A/B control modules. Compatible with natural gas and with an ECO connector.
Specifications
| Brand | Honeywell |
|---|---|
| MPN | VR8204A2175 |
| Field adjustment range | 3 to 5" W.C. (0.7 to 1.2 kPa) |
| Standard factory regulator setting | 3.5" W.C. (0.9 kPa) |
| Connection size | 1/2" NPT |
| Number of stage | Single-Stage |
| Frequency | 60 Hz |
| Voltage | 24V |
| Opening characteristics | Standard |
| Temperature rating | -18 to 79°C (0 to 175°F) |
- SKU HONVR8204A2175
