ASCO S402GF02V9BF5 | Gc Valves S402GF02V9BF5 1/4" NPT Brass Solenoid Valve
Couldn't load pickup availability
Got questions? Ask an expert!

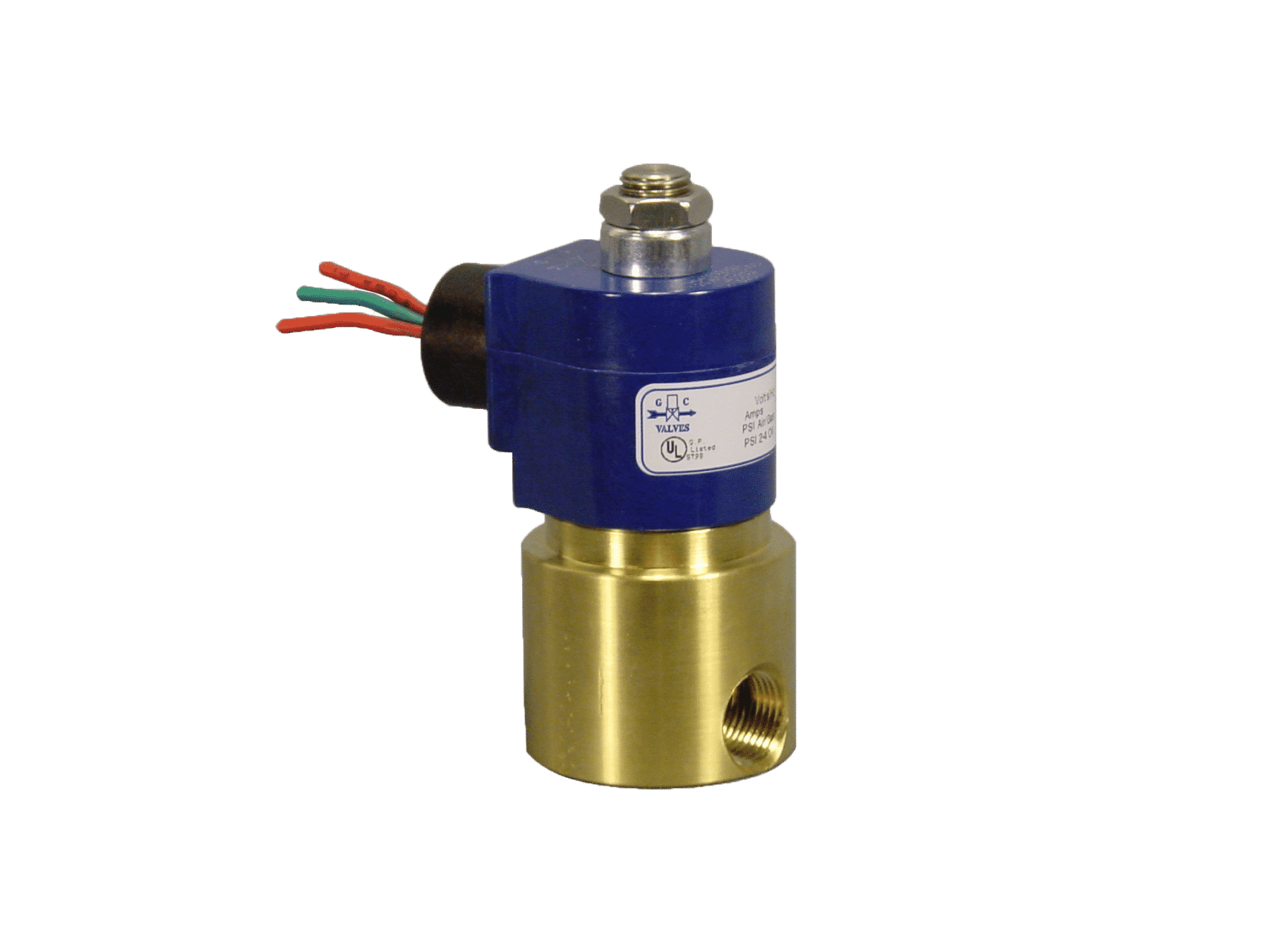

The Asco GC Valves S402GF02V9BF5 is a heavy-duty, 2-way normally open pilot piston solenoid valve from the reliable S40 Series. Constructed with a robust brass body and equipped with highly durable FKM seals, this versatile 110V/120V AC valve is engineered to safely and effectively control a wide variety of media, including air, neutral gases, water, steam, light oil, and both slightly aggressive and aggressive fluids.
Specifications
| Brand | ASCO |
|---|---|
| MPN | S402GF02V9BF5 |
| Model | S402GF02V9BF5 (S40 Series) |
| Product type | Pilot Piston Solenoid Valve |
| Valve function | 2-Way, Normally Open |
| Body material | Brass |
| Seal material | FKM |
| Pipe size | 1/4" NPT |
| Orifice size | 3/8" |
| Electrical specifications | 110V/120V AC (Coil Class F) |
| Housing | 1/2" Conduit NEMA 4X |
| Compatible media | Air, neutral gases, water, steam, light oil, and aggressive/slightly aggressive media |
| Certifications | CE, CSA, and UL approved |
- SKU ASCOS402GF02V9BF5
