McDonnell & Miller 176902 | Low Water Cut-Off & Pump Controller
Couldn't load pickup availability
Got questions? Ask an expert!

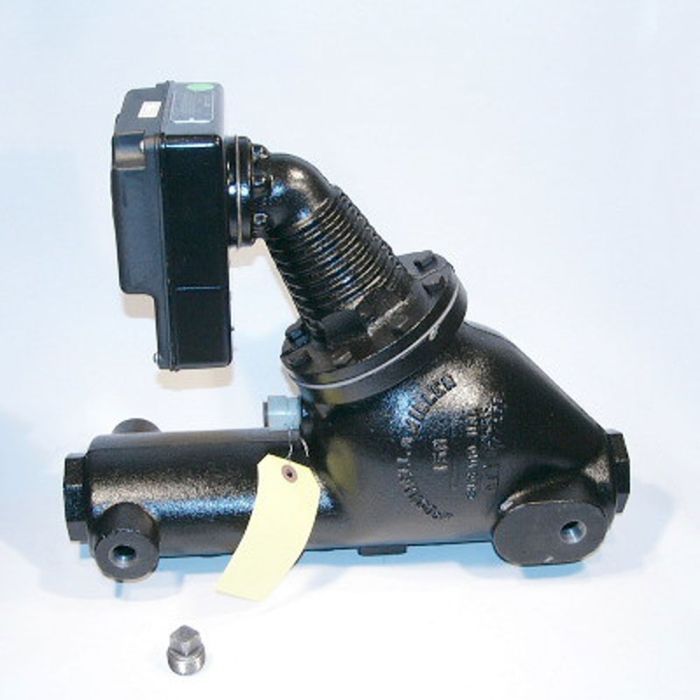

McDonnell & Miller model number 157S-RL is a combination float-operated low water cut-off and pump controller for steam boilers with an integral water column. The controller has 1/2" NPT tappings for gauge glass and tri-cocks. This control features an automatic reset with two 120 volt bi-metal snap switches. One switch is single pole, single throw for pump control. The other is single pole, double throw for low water cut-off and alarm actuation. Its maximum pressure is 150 psi and it has an alternative tapped 1-1/4" FIP connection.
Specifications
| Brand | McDonnell & Miller |
|---|---|
| MPN | 176902 |
| Model | 157S-RL |
| M&M series | Series 157S |
| Application | Steam Boilers |
| Control switch | SWA-150S |
| Control reset | Automatic |
| Voltage | 120V, 240V |
| Connection size | 1-1/4" |
| Control connection | NPT |
| Max pressure | 150 psi |
| Installation method | 1" Equalizing Piping |
| UPC | 751875036525 |
| Alias | 157SRL |
| Weight (lb) | 42.37 |
| Dimensions (L × W × H) | 18.9" x 8.1" x 15.15" |
- SKU MM157S-RL
