McDonnell & Miller 163400 | 193 Low Water Cut-Off & Pump Controller
Couldn't load pickup availability
Got questions? Ask an expert!

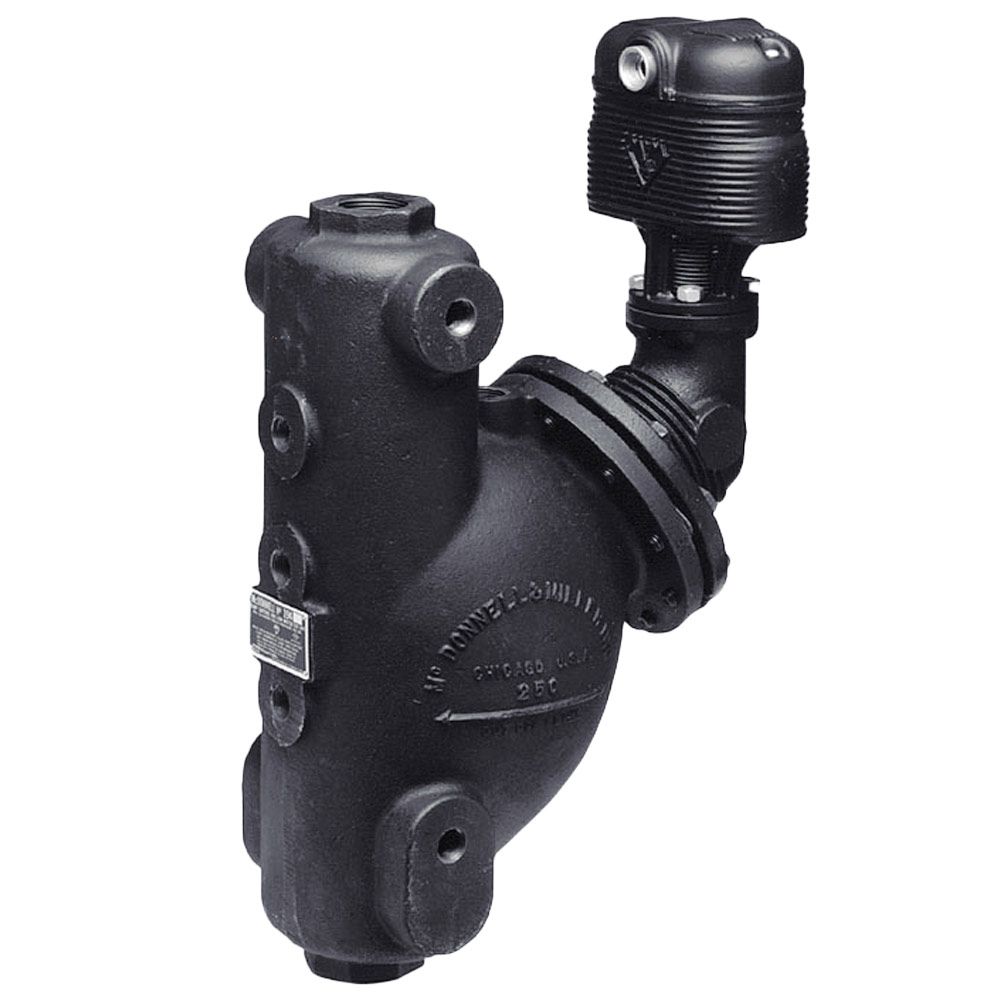

McDonnell & Miller model 193 combination low water cut-off and pump controller with automatic reset (No. 5 Switch) for steam boilers with pressures up to 150 psi. This standard model has 1" NPT connections with 1/2" NPT column connections for the water gauge valves and compression gauge cocks.
Specifications
| Brand | McDonnell & Miller |
|---|---|
| MPN | 163400 |
| Model | 193 |
| M&M series | Series 193 |
| Application | Steam Boilers |
| Control switch | No. 5 |
| Control reset | Automatic |
| Voltage | 120V, 240V |
| Connection size | 1" |
| Control connection | NPT |
| Max pressure | 150 psi |
| Installation method | 1" Equalizing Piping |
| UPC | 751875003756 |
| Weight (lb) | 57.03 |
| Dimensions (L × W × H) | 10" x 17" x 13" |
- SKU MM193
