McDonnell & Miller 166600 | 194 Low Water Cut-Off & Pump Controller
Couldn't load pickup availability
Got questions? Ask an expert!

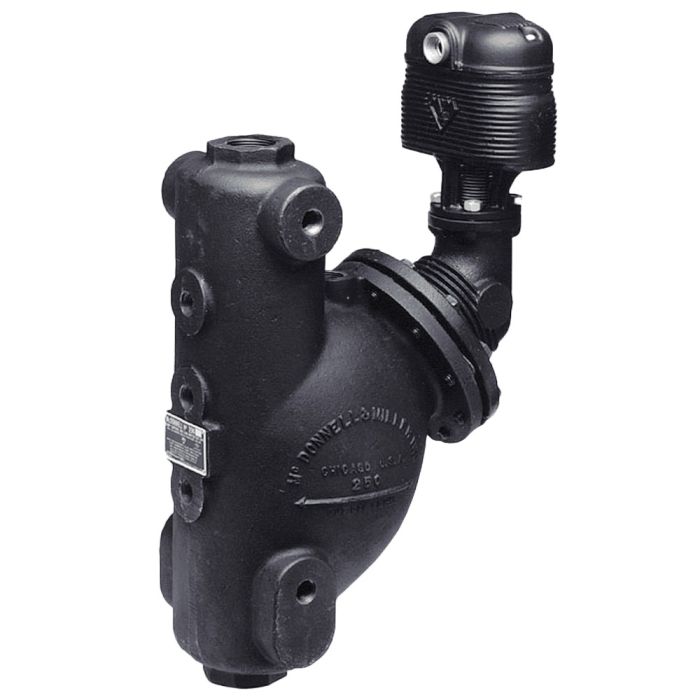

McDonnell & Miller model 194 combination low water cut-off and pump controller with automatic reset (No. 5 Switch) for steam boilers with pressures up to 250 psi. This standard model has 1-1/4" NPT connections with 1/2" NPT column connections for the water gauge valves and compression gauge cocks.
Specifications
| Brand | McDonnell & Miller |
|---|---|
| MPN | 166600 |
| Model | 194 |
| M&M series | Series 194 |
| Application | Steam Boilers |
| Control switch | No. 5 |
| Control reset | Automatic |
| Voltage | 120V, 240V |
| Connection size | 1-1/4" |
| Control connection | NPT |
| Max pressure | 250 psi |
| Installation method | 1-1/4" Equalizing Piping |
| UPC | 751875004210 |
| Weight (lb) | 74.08 |
| Dimensions (L × W × H) | 23" x 9" x 17" |
- SKU MM194
