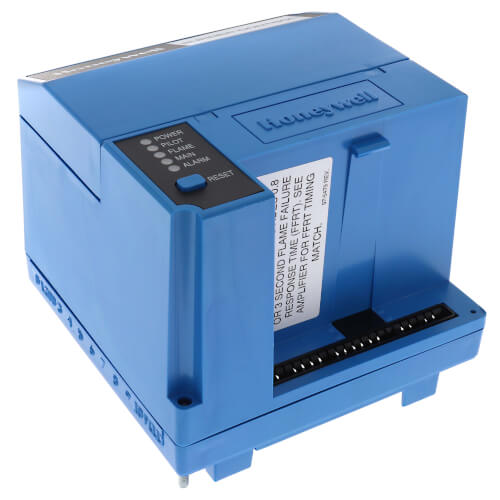

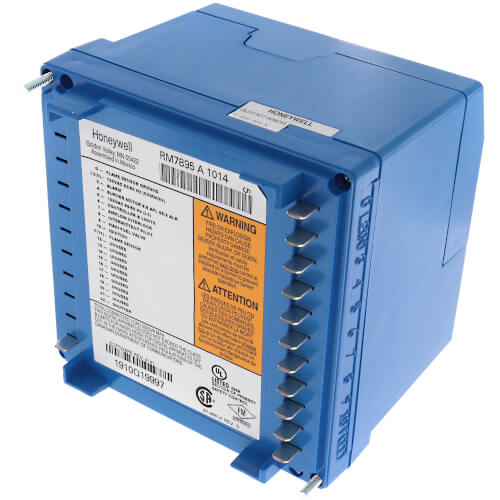

Honeywell RM7895A2014 On-Off Primary Control with PrePurge - Intermittent Pilot

On-Off Primary Control with Shutter Drive Output, Valve Proving Feature, and blinking LED fault annunciation

Overview:
Microprocessor-based integrated burner control for industrial semi-automatically fired gas, oil, coal, or combination fuel single burner applications. Provides level of safety, functional capability and features beyond conventional controls.

Features:

• Functions include automatic burner sequencing, flame supervision, system status indication, system or self-diagnostics and troubleshooting.

• Subbase, amplifier, and prepurge timer are required for operation.

• Options include PC interface, keyboard display module, DATA CONTROLBUS? MODULE, remote display module, first-out expanded annunciator, and COMBUSTION SYSTEM MANAGER? software.

• Five LEDs provide sequence information.

• Interchangeable plug-in flame amplifiers.

• Optional local or remote annunciation of operation and fault information.

• Nonvolatile memory retains history files and sequencing status after power loss.

• Optional remote reset capability.

• Optional report generation.

• Selectable relight or lockout on loss of flame.

• Airflow switch check.

Required Components:
Q7800A,B Universal Wiring Subbases. R7847, R7848, R7849, R7851, R7852, R7861, or R7886 Flame Signal Amplifier. ST7800A Plug-in Purge Timer Card.
