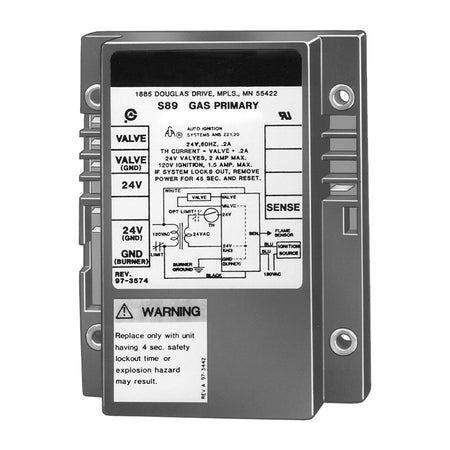

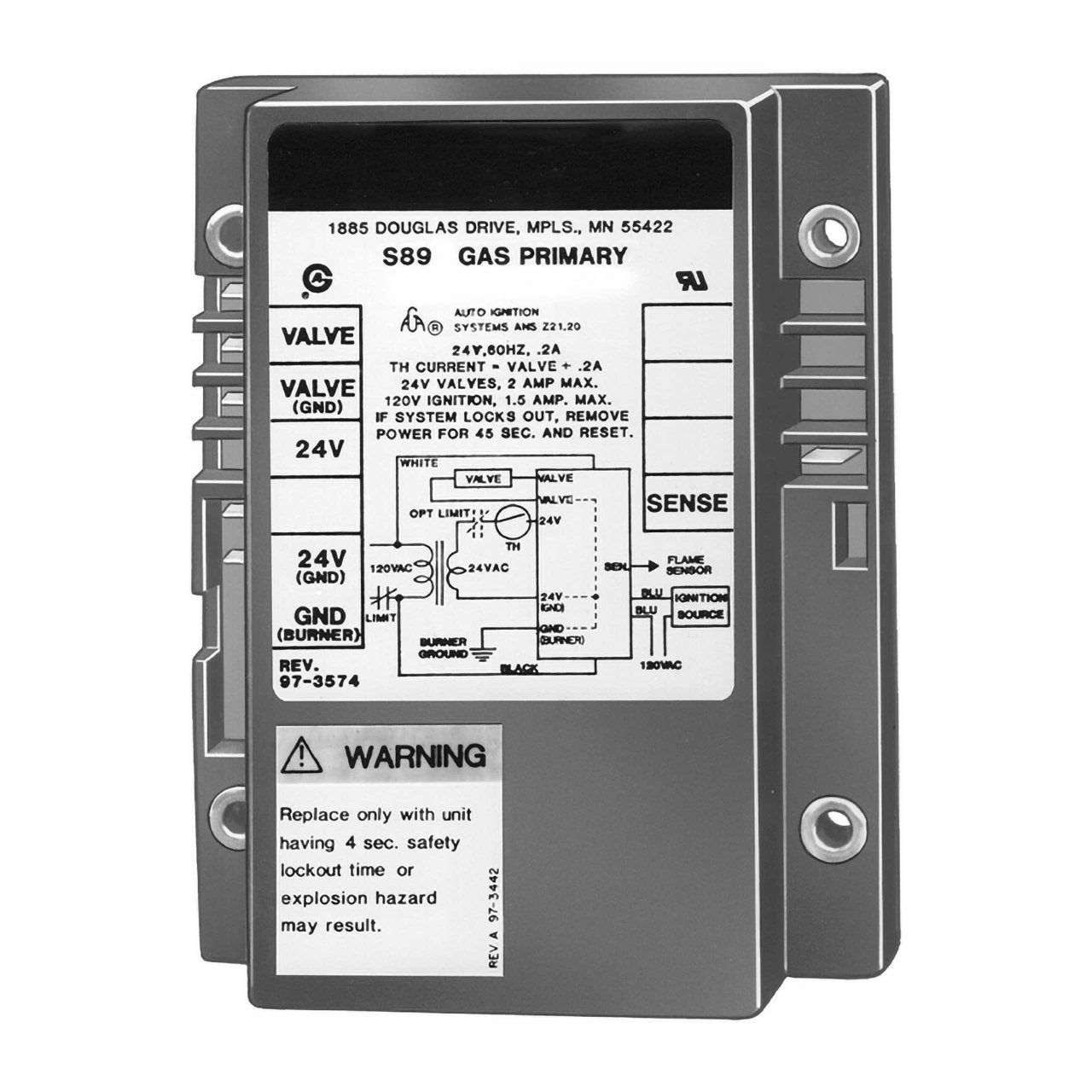

Honeywell S89E1058 Two-Rod Direct Spark Ignition Control, 4 Sec Lockout
Couldn't load pickup availability
Got questions? Ask an expert!
The Honeywell S89E1058 is a two-rod direct spark ignition control module designed to provide reliable electronic control of direct spark ignition systems. It is ideal for use on gas-fired furnaces, boilers, conversion burners, and other heating appliances utilizing external spark transformers.
- Part Number: S89E1058 (S89E Series)
- Product Type: Direct Spark Ignition Control Module
- Voltage: 24 VAC control (separate 120 VAC spark generator provides high voltage potential for main burner ignition)
- Rod Configuration: Two rod (uses separate electrodes for spark ignition and flame sensing)
- Timing: 4-second trial and lockout timing
- Safety Lockout: Locks out after one trial for ignition if the main burner fails to ignite; easily resets from the thermostat after lockout
- Compatibility: Use with any 24 VAC combination gas control designed for direct spark applications and rated at 2.0A or less
- SKU HONS89E1058
