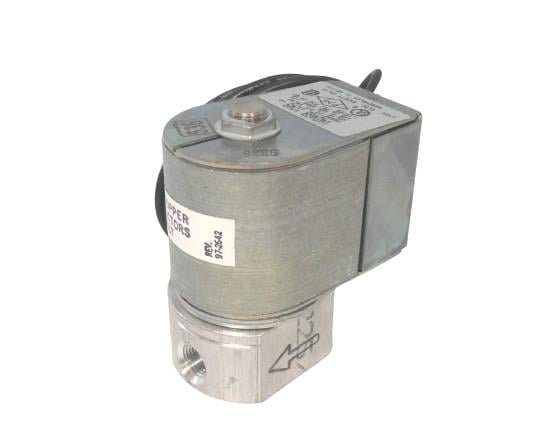

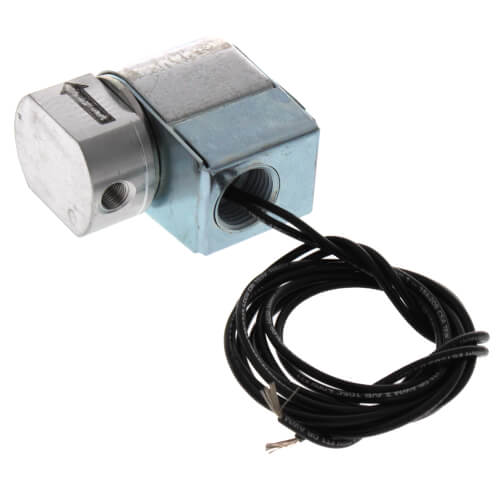

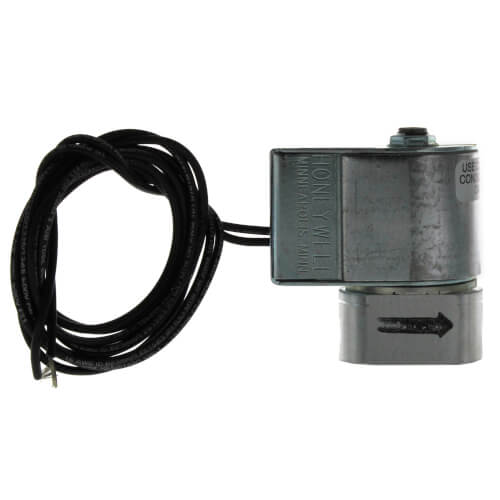

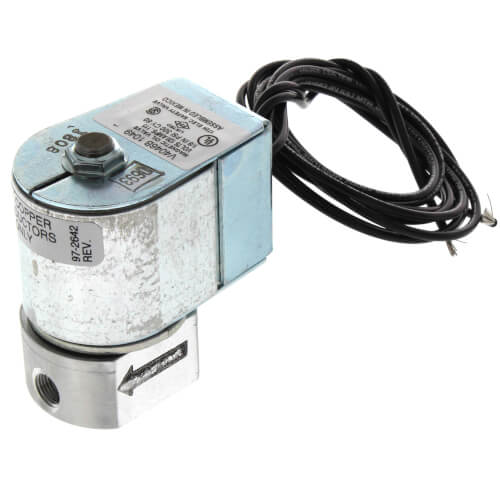

Honeywell V4046A1074 | V4046B1049 1/8" Magnetic Oil Valve, 120V, 300 Max PSI
Regular price
$108.99
Couldn't load pickup availability
100% Secure Payments
Industry Leading Quality & Service
Got questions? Ask an expert!
The Honeywell V4046B1049 is a 120 VAC magnetic valve designed for the ON-OFF control of oil flow to domestic oil burner equipment. For added safety, the valve closes immediately upon power interruption.
Specifications
| Brand | Honeywell |
|---|---|
| MPN | V4046A1074 |
| Fuel type | #2 Fuel Oil |
| Pipe size | 1/8" NPT |
| Voltage | 120 VAC |
| Maximum pressure | 300 PSI |
| Valve type | Straight through |
| Opening type | Immediate |
| Fluid temperature range | 125°F Maximum |
| Ambient temperature range | 32°F to 115°F |
| Electrical connections | Two 36" (914 mm) leadwires, 1/2" conduit bushing |
| Mounting | Mount directly to pipeline or on a support bracket |
| Dimensions | 2-3/4" H x 1-5/8" W x 2-5/8" D |
- SKU HONV4046A1074
