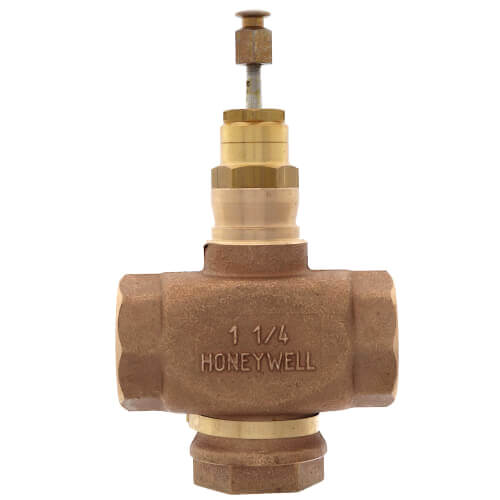

Honeywell V5011N3046 1-1/4" NPT Threaded Two-Way Globe Valve, 18.7 Cv

Note: This product was discontinued by the manufacturer on April 19, 2024.

The Honeywell V5011N3046 is a 1-1/4" two-way, reverse-acting threaded globe valve designed to control steam, chilled or hot water, and glycol solutions (up to 50% concentration) in heating or cooling HVAC applications. It is built for both two-position and modulating control systems and provides accurate positioning for state-of-the-art temperature control.

• Part Number: V5011N3046
• Valve Type: Two-way, straight-through globe valve (Reverse Acting)
• Connection Size: 1-1/4" Female NPT
• Flow Capacity: 18.7 Cv
• Controlled Medium: Steam, chilled or hot water (with up to 50% glycol). Not suitable for combustible gas service.
• Materials: Red brass body, stainless steel stem, brass plug/ball/disc, and stainless steel metal-to-metal seats
• ANSI/ASME Rating: 150
• Maximum Differential Pressure: 240 psi (Close-off) / 20 psid (Maximum for quiet water service)
• Temperature Ratings: 36°F to 248°F (Water) / Up to 340°F (Steam)
• Seat Leakage Rate: ≤0.05% of Cv
• Flow Characteristic: Equal percentage flow for water; linear flow for steam
• Rangeability: 50:1 per VDI/VDE 2173
• Stem Travel: 3/4"
• Bonnet Size: 1-3/8"
• Actuation: Directly coupled electric and pneumatic actuators easily mountable (Actuator must be purchased separately)
• Maintenance: Features spring-loaded, self-adjusting packing; repack and rebuild kits available for field servicing
• Dimensions: 7-5/16" H x 3-1/4" W x 1-9/16" D
