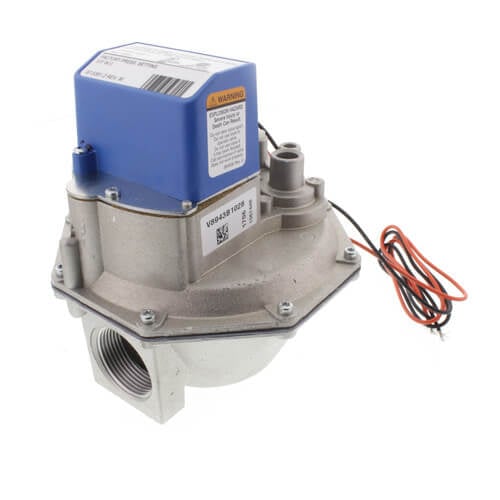

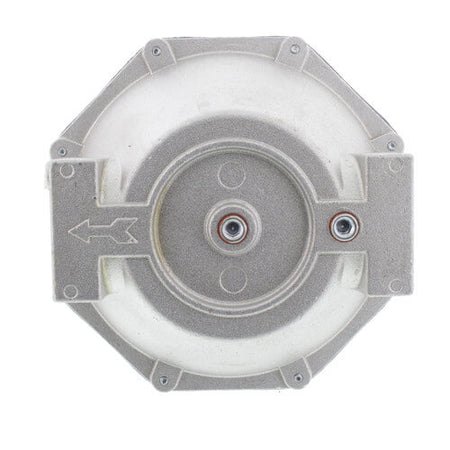

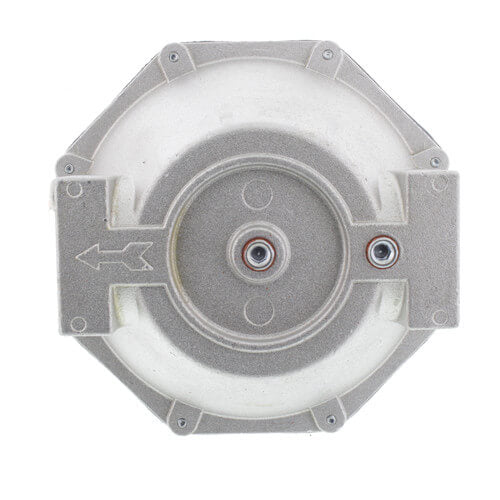

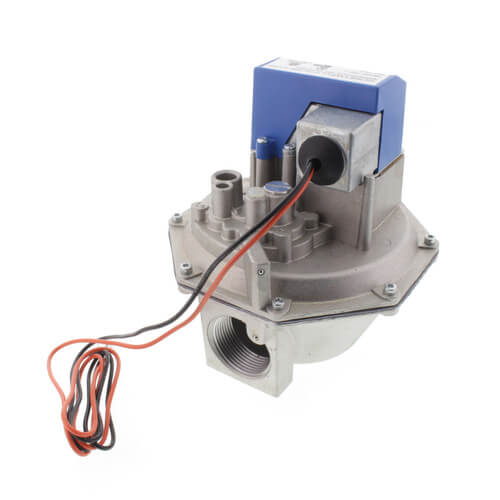

Honeywell V8943B1028 | Single Stage Diaphragm Gas Valve, Slow Opening (1-1/4", 24V)
Couldn't load pickup availability
Got questions? Ask an expert!
The Honeywell V8943B1028 is a slow-opening, single-stage pressure regulating diaphragm gas valve. It combines the functions of safety shutoff and pressure regulation in a single unit and is widely used on atmospheric boilers, commercial water heaters, unit heaters, duct furnaces, makeup air, and rooftop heaters.
Specifications
| Brand | Honeywell |
|---|---|
| MPN | V8943B1028 |
| Gas type | Natural Gas |
| Pipe size | 1-1/4" NPT |
| Voltage | 24 VAC (for use with 24V thermostats or controllers) |
| Pressure | 1/2 Max PSI |
| Mounting | Horizontal |
| Design | Die-cast aluminum valve body with a straight-through, non-offset pattern |
| Functionality | Slow opening, solenoid-operated |
| Safety | Valve closes on power failure; recommended for final shutoff service |
| Replacement | Designed as a replacement for V4843 and V8843 gas valves |
- SKU HONV8943B1028
