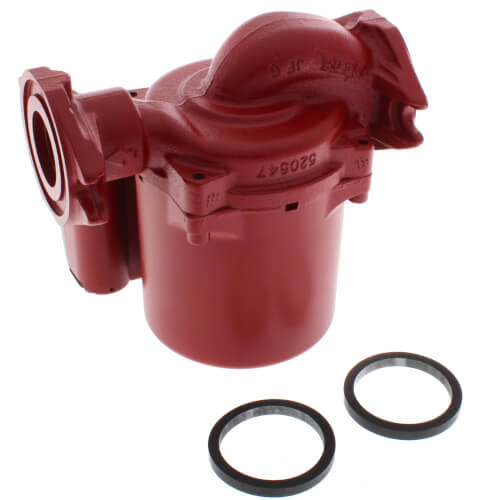

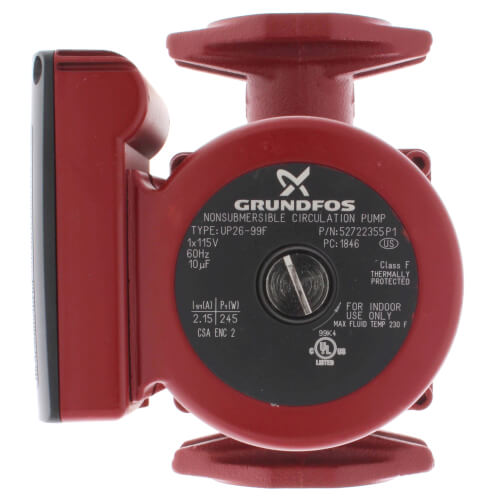

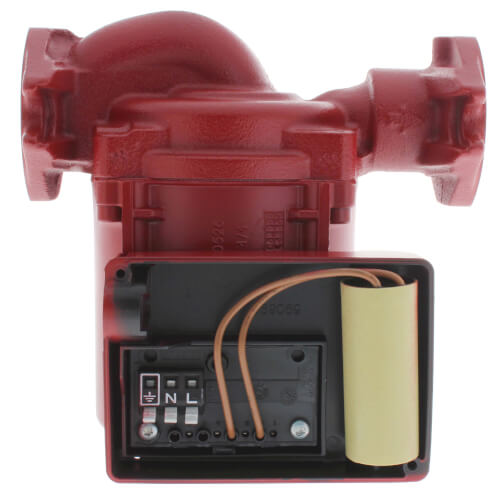

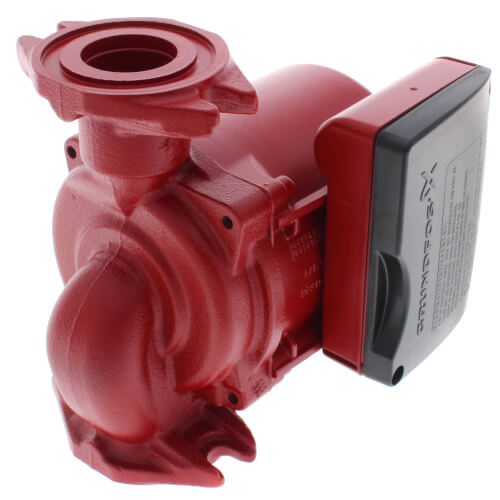

UP26-99F 1/6 HP 115V Cast Iron Flanged Circulator Pump (Part 2400-386)

The UP26-99F (part number 2400-386) is a highly efficient 1/6 HP cast iron circulator pump designed for a wide variety of heating applications, including hydronic, fan coil, solar, and radiant systems. Engineered with built-in motor protection for extended system life, this 115V single-speed pump ensures whisper-quiet operation, making it an excellent choice for sound-sensitive installations.

• Model/Part Numbers: UP26-99F / 2400-386
• Product Type: 1-Speed Circulator Pump
• Motor Specifications: 1/6 HP / 115V / 60Hz / 1-Phase / 2.15 Amps / 3000 RPM
• Material: Cast Iron
• Performance: 0-34 GPM flow range (34 Max GPM) with a 0-32 ft head range (32 Max ft head)
• Max Pressure: 145 PSI
• Temperature Range: 36°F to 230°F
• Connections: GF 15/26 Flange (Flanged x Flanged); compatible with 3/4", 1", 1-1/4", and 1-1/2" connection sizes
• Key Features: Whisper-quiet operation and built-in motor protection for superior longevity and reliability
• Applications: Hydronic heating, fan coil heating, solar heating, and radiant heating systems
