McDonnell & Miller 142400 | Low Water Cut-Off
Couldn't load pickup availability
Got questions? Ask an expert!

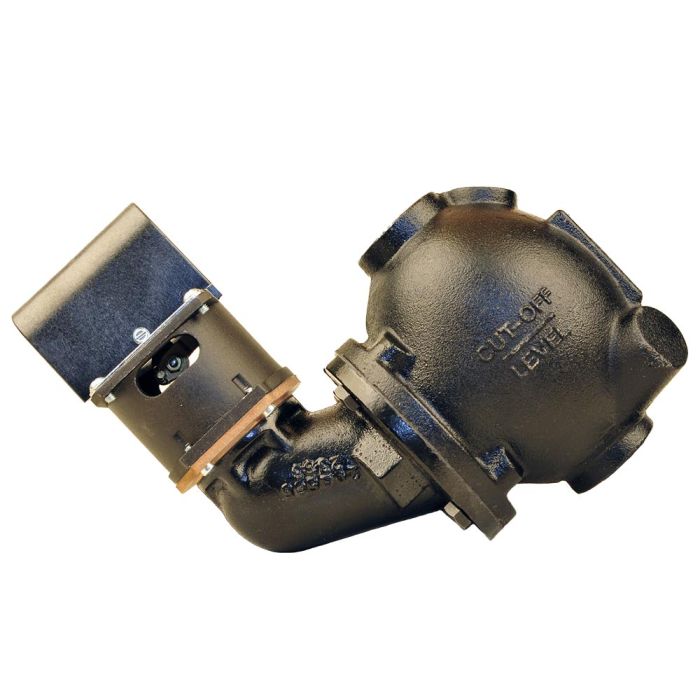

McDonnell & Miller model number 63 is a float-operated low water cut-off for steam or hot water boilers. This control features an automatic reset with dual 120 volt switches for low water cut-off and alarm or electric water feeders. Its maximum pressure is 50 psi and has a tapped 1" FIP connection for equalizing pipes. Blow down valve required.
Specifications
| Brand | McDonnell & Miller |
|---|---|
| MPN | 142400 |
| Model | 63 |
| Application | Hot Water Boilers, Steam Boilers |
| Connection size | 1" |
| Control connection | NPT |
| Installation method | 1" Equalizing Piping |
| Voltage | 120V, 240V |
| Control reset | Automatic |
| Control switch | No. 2 |
| Max boiler pressure | 50 psi |
| UPC | 751875002025 |
| Alias | No. 63 |
| Weight (lb) | 12.89 |
| Dimensions (L × W × H) | 14.15" x 8" x 6.15" |
- SKU MM63
