McDonnell & Miller 155200 | Low Water Cut-Off with 2-1/4" Insertion Length
Couldn't load pickup availability
Got questions? Ask an expert!

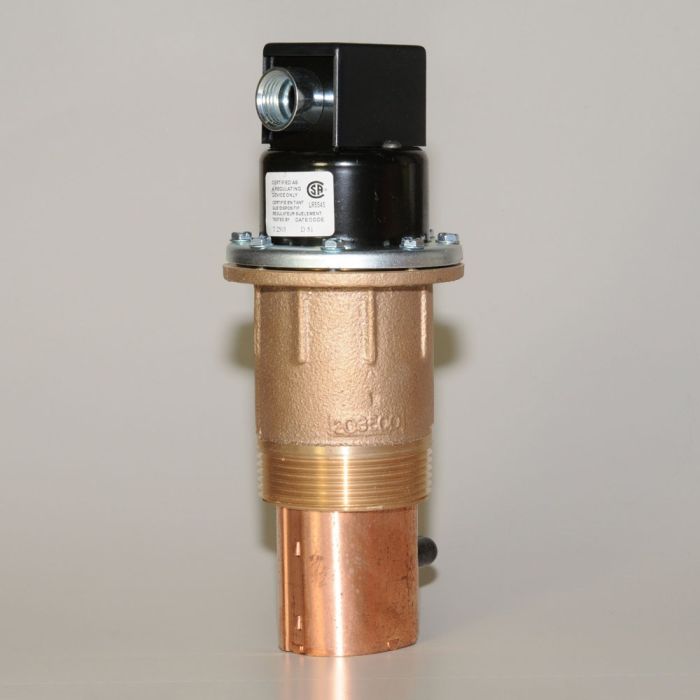

McDonnell & Miller model number 269 is a float-operated low water cut-off for mounting into 2-1/2" side tappings on steam boilers. This cut-off features dual 120 volt switches for low water cut-off and alarm or electric water feeder. Its maximum pressure is 20 psi and it has an insertion length of 2-1/4".
Specifications
| Brand | McDonnell & Miller |
|---|---|
| MPN | 155200 |
| Model | 269 |
| M&M series | Series 69 |
| Application | Steam Boilers |
| Connection size | 2-1/2" |
| Control connection | NPT |
| Installation method | Direct to Boiler Tappings |
| Control reset | Automatic |
| Control switch | No. 11 |
| Max boiler pressure | 20 psi |
| UPC | 751875003312 |
| Weight (lb) | 4.70 |
- SKU MM269
