McDonnell & Miller 126800 | Make-Up Water Feeder
Couldn't load pickup availability
Got questions? Ask an expert!

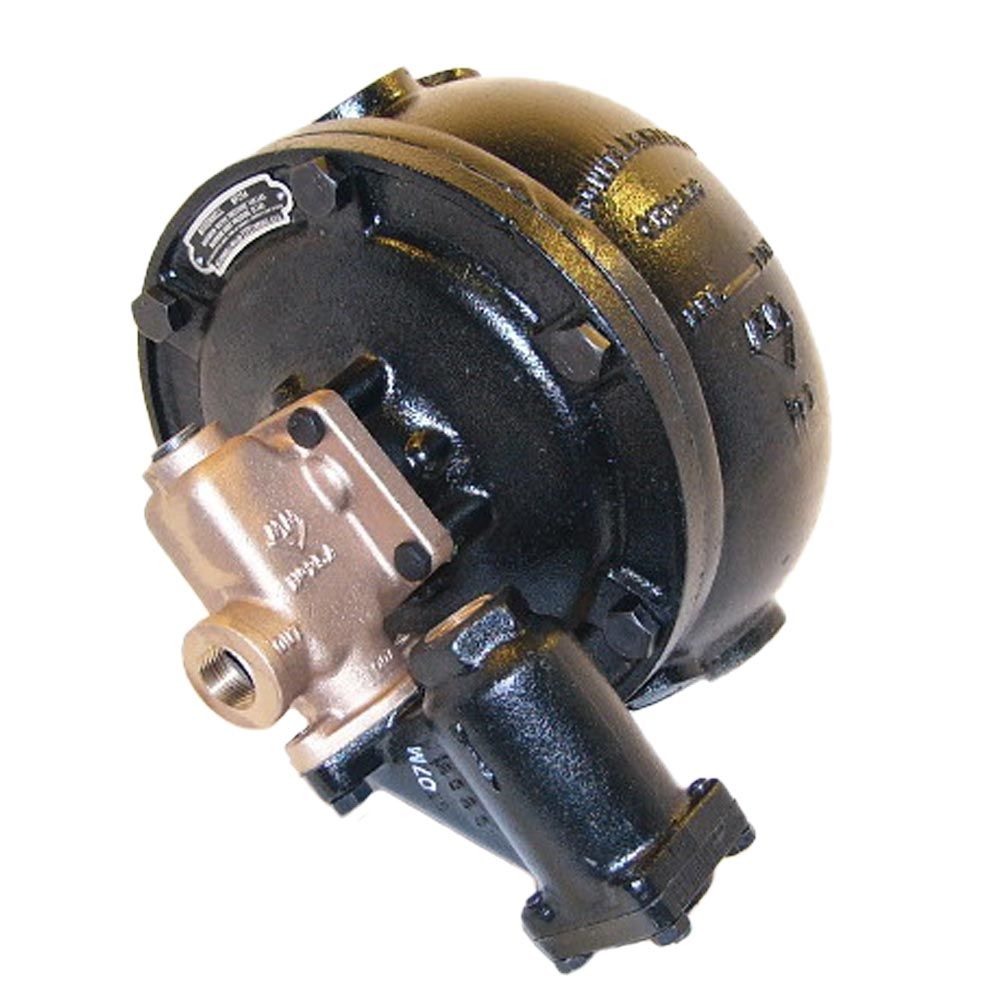

McDonnell & Miller model number 25A is a float-operated make-up water feeder for boiler receiver tanks with a tapped 1" FIP supply and 1" FIP equalizing connections. This water feeder features proportional feed action, a maximum water supply pressure of 100 psi and an operating pressure of 35 psi.
Specifications
| Brand | McDonnell & Miller |
|---|---|
| MPN | 126800 |
| Model | 25-A |
| Application | Receiver Tanks |
| Voltage | N/A |
| Connection size | 3/4" |
| Control connection | NPT |
| Max water pressure | 100 psi |
| Max water temp | 120°F |
| Control reset | N/A |
| Control switch | N/A |
| UPC | 751875001141 |
| Weight (lb) | 41.50 |
| Dimensions (L × W × H) | 11" x 15.5" x 14.5" |
- SKU MM25A
