McDonnell & Miller 176296 | 752P-MT-24 Low Water Cut-Off 24Vac
Couldn't load pickup availability
Got questions? Ask an expert!

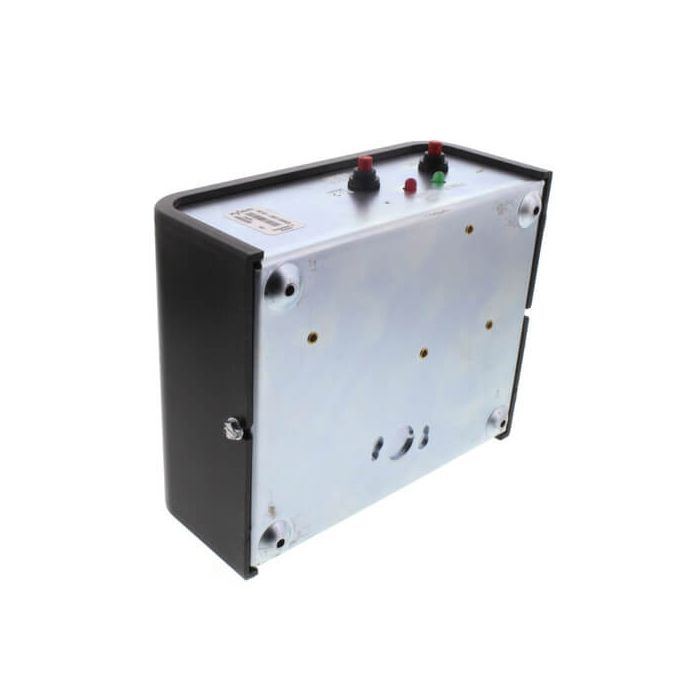

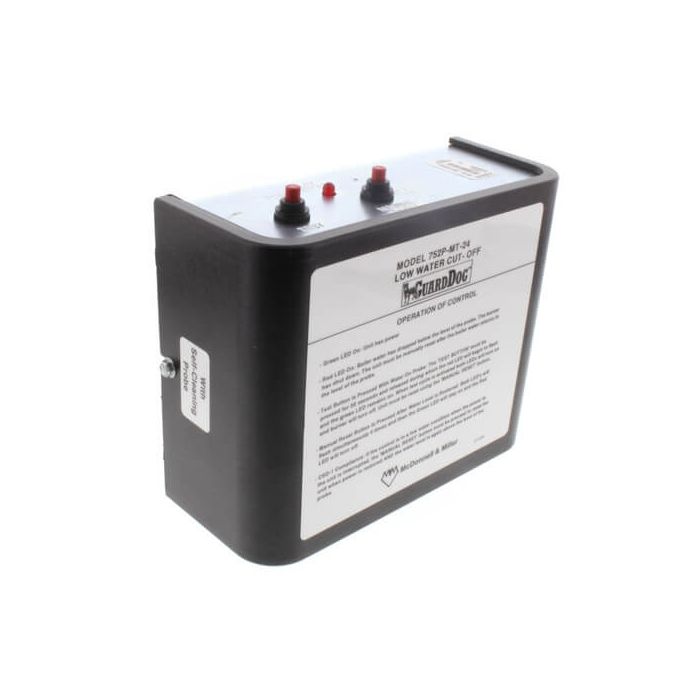

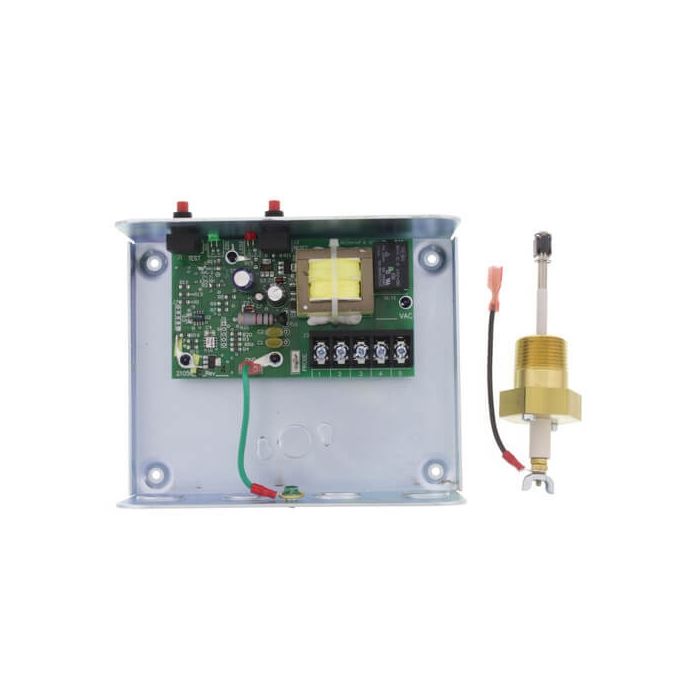

The McDonnell & Miller 176296 model 752P-MT-24 is an electronic low water cut-off with a standard probe for hot water and steam boilers. It has a manual reset button, a test button, and green (power-on) and red (low-water) indicating LEDs. The power supply is 120-volt AC power.
Specifications
| Brand | McDonnell & Miller |
|---|---|
| MPN | 176296 |
| Model | 752P-MT-24 |
| Application | Hot Water Boilers, Steam Boilers |
| Connection size | 3/4" |
| Control connection | NPT |
| Max steam pressure | 15 psi |
| Max water pressure | 160 psi |
| Max water temp | 250°F |
| Max ambient temp | 135°F |
| Voltage | 24V |
| Installation method | Direct to Boiler Tappings |
| Control reset | Manual |
| Enclosure | NEMA 1 |
| Ohms sensitivity | 20,000 ohm |
| UPC | 751875232767 |
| Weight (lb) | 2.91 |
| Dimensions (L × W × H) | 6.3" x 7.85" x 3.3" |
- SKU MM752P-MT-24
