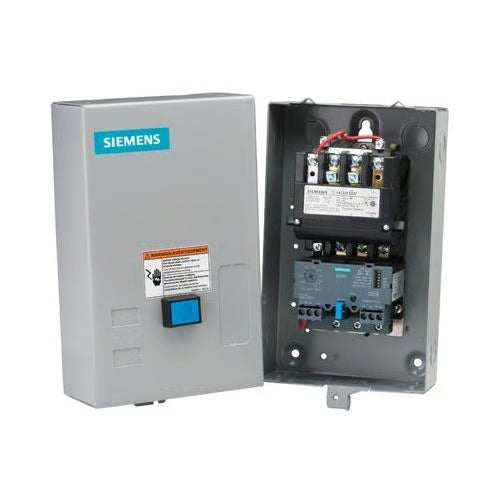

Siemens 14CUB32BA | Class 14 Full Voltage Heavy Duty Motor Starter, 110 to 120/220 to 240 VAC Coil, Non-Reversing Action, 3 Poles, NEMA 1/0 Enclosure
Regular price
$395.00
Couldn't load pickup availability
100% Secure Payments
Industry Leading Quality & Service
Got questions? Ask an expert!
Features
- Rugged industrial design, half sizes for cost and space savings, dual voltage, dual frequency coils
- Easy coil access, overload test feature, straight thru wiring
- 0.5 hp at 200 VAC, 0.75 hp at 230 VAC, 1.5 hp at 460 VAC, 2 hp at 575 VAC
- Solid state or ambient compensated bimetal overload protection
- Wide range of accessories
Specifications
| Brand | Siemens |
|---|---|
| MPN | 14CUB32BA |
| Frequency rating | 60 Hz |
| Motor power | 1 hp, 2, 3 hp, 4, 1-1 hp, 2, 2 hp |
| Number of poles | 3 |
| Operating cycles | 10000000 Cycles |
| Operating temperature | -4 to 104 deg F |
| Overload relay | Solid-State |
| Timing | 19 to 29 ms On/10 to 24 ms Off |
| Voltage rating | 600 VAC |
| Wattage | 8.6 W |
| Application | General Purpose Applications |
| Standards and approvals | UL File No. E14900, CSA File No. LR6535 |
| Dimensions | 11 in H x 7 in W x 5 in D |
| Action | Non-Reversing |
| Auxiliary contact rating | 1NO |
| Coil voltage | 110 to 120/220 to 240 VAC |
| Connection type | Thread |
| Enclosure type | NEMA 1/0 |
| Type | Class 14 Full Voltage Heavy Duty |
| Amperage rating | 0.75 to 3.4 A |
| Reset type | Automatic, Manual |
- SKU SIEMAN14CUB32BA
