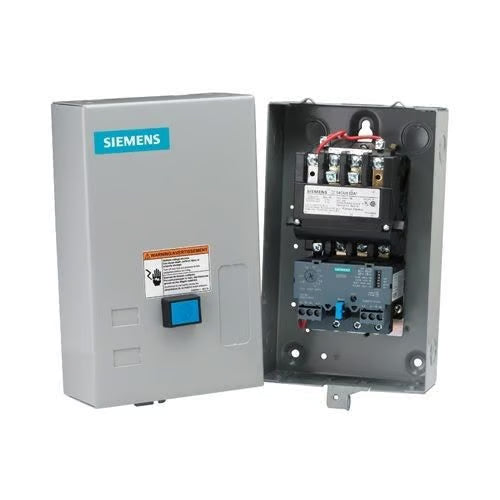

Siemens 14CUD32BA | Class 14 Full Voltage Motor Starter, 110 to 120/220 to 240 VAC Coil, Non-Reversing Action, 3 Poles, NEMA 1/0 Enclosure
Regular price
$425.00
Couldn't load pickup availability
100% Secure Payments
Industry Leading Quality & Service
Got questions? Ask an expert!
- 3 hp at 230 VAC
| Frequency Rating |
60 Hz
|
|---|---|
| Motor Power |
3 hp
|
| Number Of Poles |
3
|
| Operating Cycles |
10000000 Cycles
|
| Operating Temperature |
-4 to 104 deg F
|
| Minimum Order Qty |
1
|
| Order Interval |
1
|
| Action |
Non-Reversing
|
| Amperage Rating |
18 A
|
| Auxiliary Contact Rating |
1NO
|
| Coil Voltage |
110 to 120/220 to 240 VAC
|
| Connection Type |
Screw
|
| Dimensions |
11 in H x 7 in W x 5 in D
|
| Overload Relay |
Solid-State
|
| Reset Type |
Automatic/Manual/Remote
|
| Timing |
19 to 29 ms On/10 to 24 ms Off
|
| Type |
Class 14 Full Voltage
|
| Voltage Rating |
600 VAC
|
| Wattage |
8.6 W
|
| Application |
General Purpose, Indoor and Motor Control Applications
|
| Standard & Approvals |
UL Listed, CSA Certified
|
| Setting |
5.5 to 22 A
|
| Enclosure Type |
NEMA 1/0
|
| Catalog ID |
SIE14CUD32BA
|
Features
- 3 hp at 230 VAC
Specifications
| Brand | Siemens |
|---|---|
| MPN | 14CUD32BA |
| Frequency rating | 60 Hz |
| Motor power | 3 hp |
| Number of poles | 3 |
| Operating cycles | 10000000 Cycles |
| Operating temperature | -4 to 104 deg F |
| Minimum order qty | 1 |
| Order interval | 1 |
| Action | Non-Reversing |
| Amperage rating | 18 A |
| Auxiliary contact rating | 1NO |
| Coil voltage | 110 to 120/220 to 240 VAC |
| Connection type | Screw |
| Dimensions | 11 in H x 7 in W x 5 in D |
| Overload relay | Solid-State |
| Reset type | Automatic/Manual/Remote |
| Timing | 19 to 29 ms On/10 to 24 ms Off |
| Type | Class 14 Full Voltage |
| Voltage rating | 600 VAC |
| Wattage | 8.6 W |
| Application | General Purpose, Indoor and Motor Control Applications |
| Standards and approvals | UL Listed, CSA Certified |
| Setting | 5.5 to 22 A |
| Enclosure type | NEMA 1/0 |
- SKU SIEMAN14CUD32BA
