Carlin

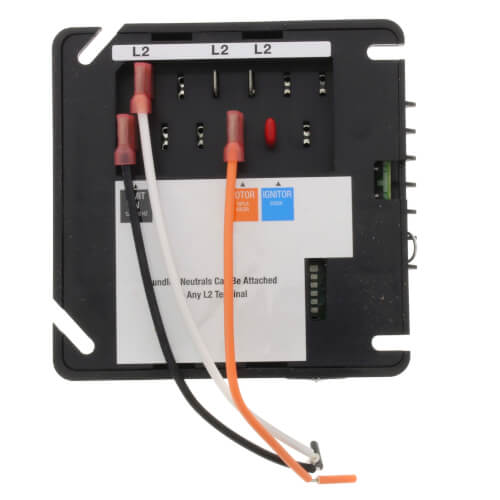

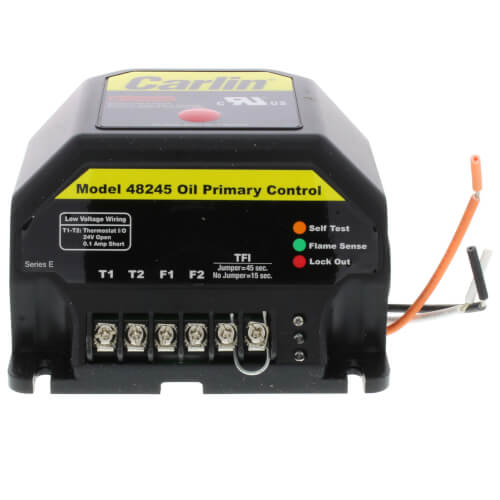

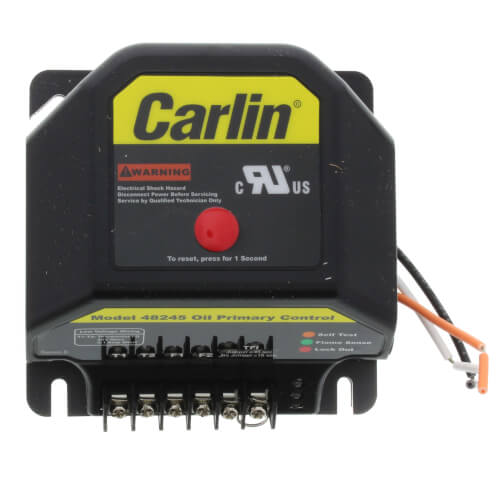

Carlin Intermittent Duty Oil Burner Primary Control (45 sec TFI)

In stock
SKU: CAR48245
$75.00
100% Secure Payments
Industry Leading Quality & Service

Got questions? Ask an expert!

Email 516-382-1019
48245 E Series Oil Primary Control (Optional 15 or 45 Sec. TFI. Constant/Intermittent Duty with Smart Ignition) Direct replacement for 3-wire primary controls (ex. Honeywell R8184G)

  • Intermittent Duty Ignition 45 Second Trial for Ignition (TFI)
  • Red LED Lockout Indicator
  • Thermostat/aquastat Compatible SMC (Safety Monitoring Circuit) Technology
  • Power Input (From Limit Circuit) 120 vac, 60 Hz, 10 VA Motor Load 5 FLA/60 LRA Ignitor Load 120 vac, 60 Hz, 500 VA
  • Operating Temperature Limits + 32°F to + 140°F
  • Storage Temperature Limits -40°F to +185°F
  • Thermostat Anticipator Current 0.2 A, AC Cad Cell Resistance with Flame R < 1500 OHMS

Specs

–
Product Type:

Oil Control
  • SKU CAR48245
