Siemans Furnas 14CUB32AA NEMA 0 Motor Starter – 120/240V AC Coil

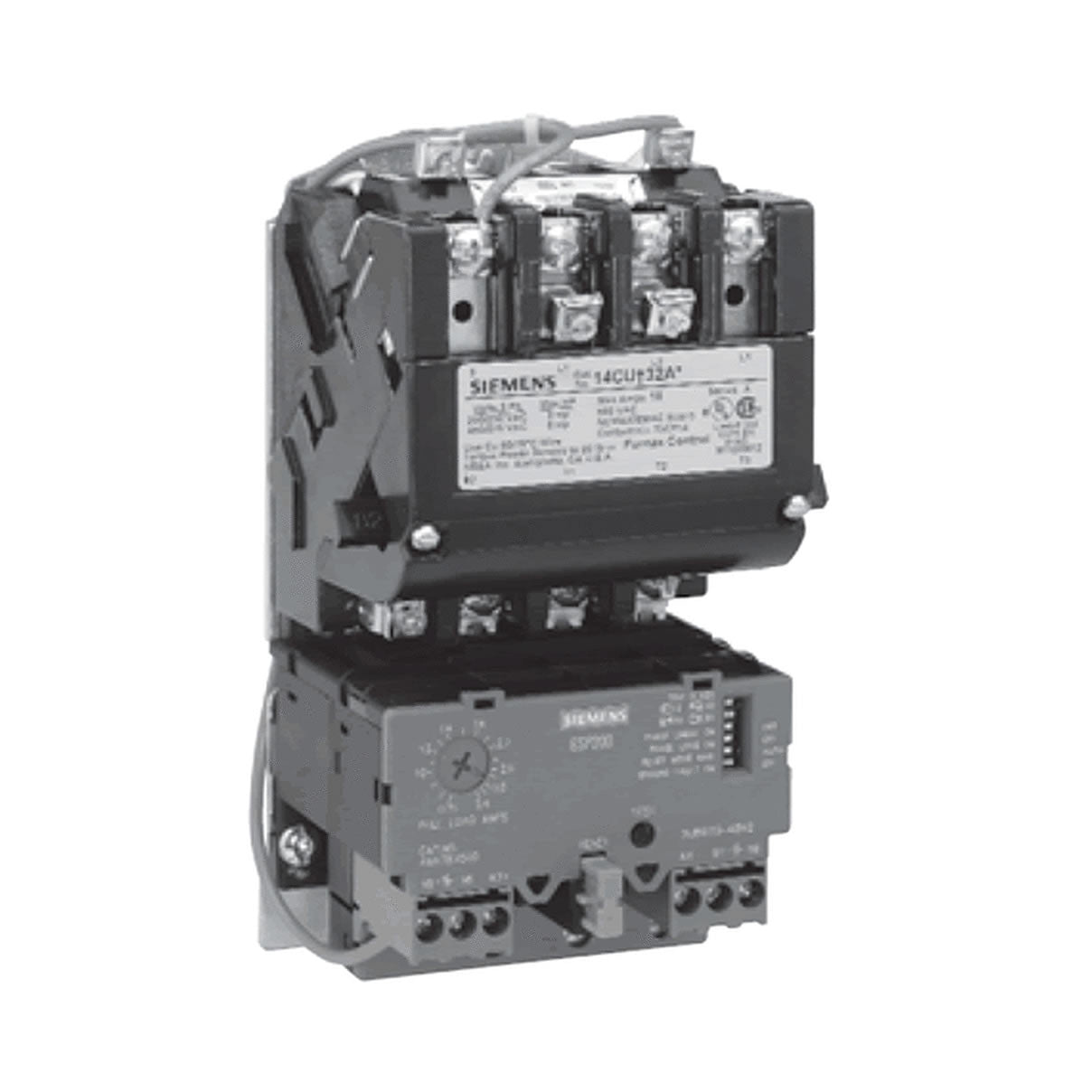

Siemens 14CUB32AA heavy duty 3 phase motor starter with a solid state overload adjustable from 0.75 to 3.4 AMP and a contactor with a 110/120 or 220/240 volt dual rated AC coil.  This NEMA size 0 starter is rated for 3/4 H.P. @ 230 volt, 1.5 H.P. @ 460 volt 3 phase and the overload relay has the option for manual or automatic reset and trips within 3 seconds if phase loss is detected. A normally open auxiliary comes standard with the 14CUB32AA and provides for low voltage protection or release when combined with an application appropriate pilot device.

Standard Features

Size 00–4 magnetic starters include the following standard features:

• Rugged Industrial Design
• Half Sizes for Cost and Space Savings
• Dual Voltage, Dual Frequency Coils
• Solid State or Ambient Compensated
• Bimetal Overload Protection
• Wide Range of Accessories
• Easy Coil Access
• Overload Test Feature
• Straight Through Wiring
• Gravity Dropout
• Large Silver Cadmium Contacts
• UL listed file #E14900 (class 14, 22, 30, 40 & 43)
• CSA certified file #LR 6535 (class 14, 22, 30, 40 & 43)
