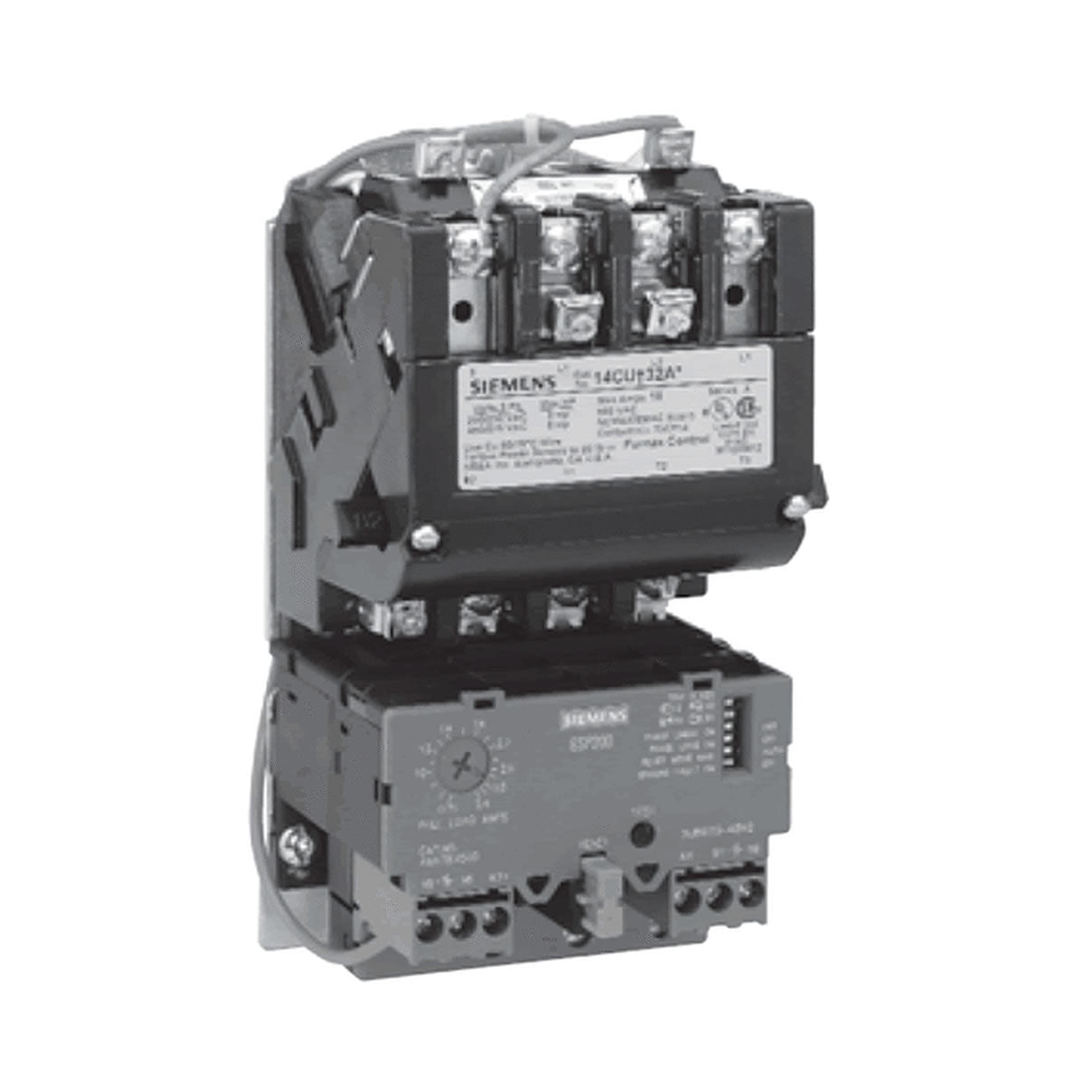

Siemens 14CUC32AA Motor Starter – 32A Full-Voltage Control
Couldn't load pickup availability
Got questions? Ask an expert!
Siemens 14CUC32AA heavy duty 3 phase motor starter with a solid state overload adjustable from 3 to 12 AMP and a contactor with a 110/120 or 220/240 volt dual rated AC coil. This NEMA size 0 starter is rated for 1.5 H.P. @ 230 volt, 2 H.P. @ 460 volt 3 phase and the overload relay has the option for manual or automatic reset and trips within 3 seconds if phase loss is detected. A normally open auxiliary comes standard with the 14CUC32AA and provides for low voltage protection or release when combined with an application appropriate pilot device.
| NEMA size | 0 |
| Coil Voltage | 110/120 or 220/240 volt AC |
| Overload AMP range | 3 to 12 AMP |
| Horsepower |
2 H.P. @ 460 volt |
Standard Features
Size 00–4 magnetic starters include the following standard features:
- Rugged Industrial Design
- Half Sizes for Cost and Space Savings
- Dual Voltage, Dual Frequency Coils
- Solid State or Ambient Compensated
- Bimetal Overload Protection
- Wide Range of Accessories
- Easy Coil Access
- Overload Test Feature
- Straight Thru Wiring
- Gravity Dropout
- Large Silver Cadmium Contacts
- UL listed file #E14900 (class 14, 22, 30, 40 & 43)
- CSA certified file #LR 6535 (class 14, 22, 30, 40 & 43)
- SKU SEINAN14CUC32AA
