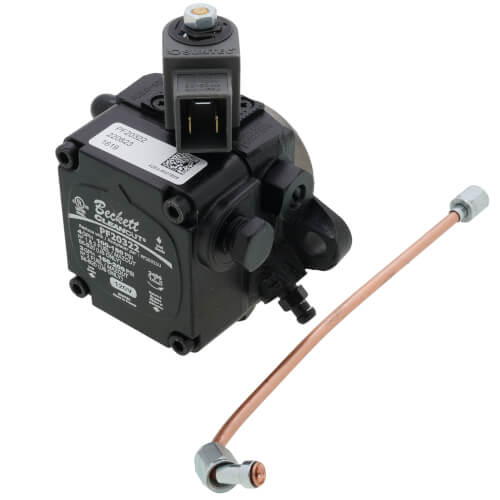

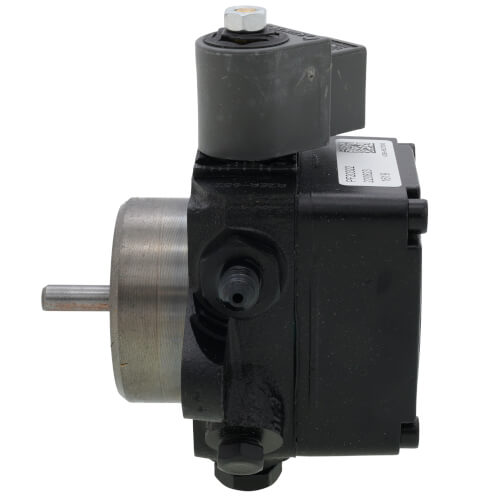

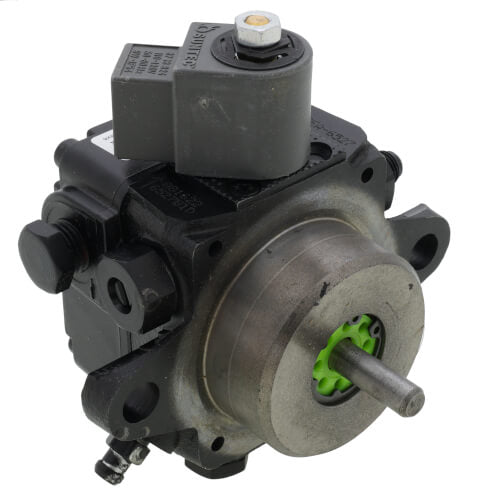

Beckett BKPF20322U | Single Stage Cleancut Oil Pump (120V, 3 GPH, 200 Max PSI)
Couldn't load pickup availability
Got questions? Ask an expert!
IMPORTANT SAFETY WARNING: This product must be installed by a qualified and licensed contractor using properly calibrated combustion test equipment. Failure to adhere to this requirement may result in significant property damage, serious personal injury, or death.
Developed as a joint effort with Suntec Industries, the Beckett Single Stage CleanCut Pump combines the clean-burning benefits of a solenoid valve with the hefty lift capabilities of traditional American pumps. It is designed to provide a highly reliable, cleaner operation with built-in leak-through protection for your heating system.
Specifications
| Brand | Beckett |
|---|---|
| MPN | BKPF20322U |
| Product type | Single Stage Oil Pump |
| Flow rate | 3.0 GPH (Note: While the unique design can deliver up to 4 GPH at 100 psi, applications above 3 GPH require an additional valve due to UL requirements) |
| Voltage | 120V |
| Maximum pressure | 200 PSI |
| Cleaner operation | The solenoid valve cuts oil flow almost instantly when power is cut to the motor, eliminating coasting stops that cause soot formation on shut-down. Pre-purge controls work to establish airflow and pressure before light-off for a cleaner start. |
| High reliability | Built with fewer moving parts than conventional pumps and avoids troublesome oil fittings. |
| Reduced motor load | Reduces demands on the motor during start-up by allowing oil to freely bypass the pump's piston, unlike external valve configurations that deadhead pressure. |
| Leak-through protection | Utilizes the same reliable piston valve found in traditional pumps to protect against leak-through in gravity feed situations. |
