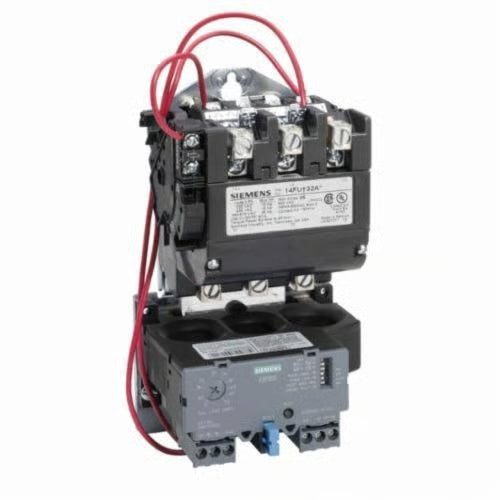

Siemens 14FUF32AA | Class 14 Full Voltage Motor Starter, 110 to 120/220 to 240 VAC Coil, Non-Reversing Action, 3 Poles, NEMA 2/Open Enclosure
Regular price
$976.43
Couldn't load pickup availability
100% Secure Payments
Industry Leading Quality & Service
Got questions? Ask an expert!
Features
- ESP 200 SS overload, motor match half sizes, dual coils
- 10 hp at 200/208 VAC, 15 hp at 220/230 VAC, 25 hp at 460/480/575/600 VAC
Specifications
| Brand | Siemens |
|---|---|
| MPN | 14FUF32AA |
| Frequency rating | 60 Hz |
| Motor power | 10 hp, 15 hp, 25 hp |
| Number of poles | 3 |
| Operating cycles | 10000000 Cycles |
| Operating temperature | -4 to 104 deg F |
| Minimum order qty | 1 |
| Order interval | 1 |
| Action | Non-Reversing |
| Amperage rating | 45 A |
| Auxiliary contact rating | 1NO |
| Connection type | Screw |
| Overload relay | Solid-State |
| Reset type | Automatic/Manual/Remote |
| Voltage rating | 600 VAC |
| Standards and approvals | cUL Listed, UL File No. E14900, CSA Certified |
| Application | For single-phase and polyphase motor applications |
| Wattage | 8.6 W |
| Type | Class 14 Full Voltage |
| Timing | 19 to 29 ms On/10 to 24 ms Off |
| Setting | 52 A |
| Enclosure type | NEMA 2/Open |

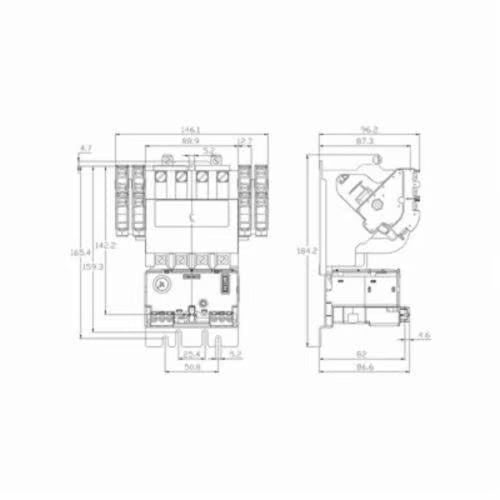

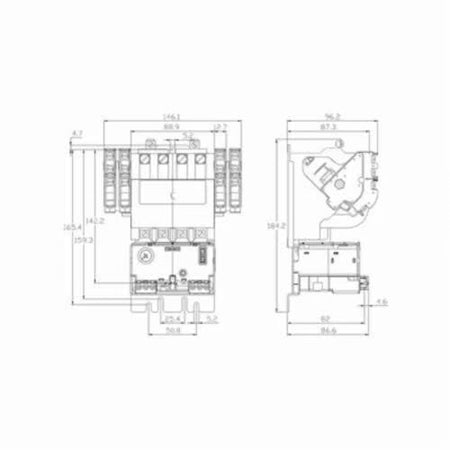

| Dimensions | 8.13 in H x 5.75 in W x 4 in D |
| Coil voltage | 110 to 120/220 to 240 VAC |
- SKU SIEMAN14FUF32AA
