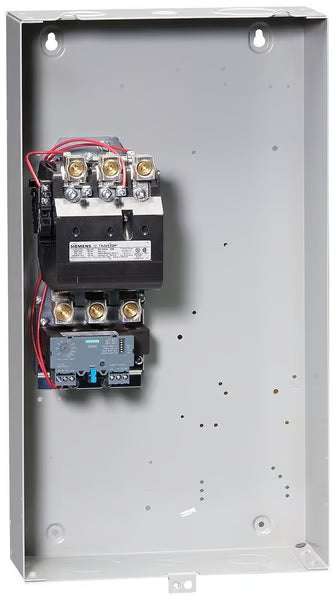

Siemens 14JUH32BA | Sz 4 Class 14 Across the Line Full Voltage Heavy Duty Non-Combination Non-Reversing NEMA Motor Starter
Regular price
$2,100.00
Couldn't load pickup availability
100% Secure Payments
Industry Leading Quality & Service
Got questions? Ask an expert!
Specification
Features
- Rugged industrial design
- Half sizes for cost and space savings
- Dual voltage and dual frequency coils
- Easy coil access
- Overload test feature
- Straight-thru wiring
- Gravity dropout
- Large silver cadmium contacts
- 110 to 120 VAC, 220 to 240 VAC at 60 Hz, 110 VAC, 190 to 220 VAC at 50 Hz coil voltage
- 40 hp at 200/208 VAC, 50 hp at 220/230 VAC, 100 hp at 460/480 VAC, 575/600 VAC motor power
- Box lug line side/load side outgoing feeder connection
Specifications
| Brand | Siemens |
|---|---|
| MPN | 14JUH32BA |
| Operating cycles | 5000000 Cycles |
| Reset type | Automatic/Manual/Remote |
| Number of poles | 3 |
| Operating temperature | -4 to 104 deg F |
| Frequency rating | 50/60 Hz |
| Enclosure type | NEMA 1 |
| Connection type | Box Lug |
| Overload relay | Solid-State |
| Voltage rating | 575/600 VAC |
| Motor power | 40 hp, 50 hp, 100 hp |
| Auxiliary contact rating | 10 A at 600 VAC, 5 A at 600 VDC |
| Type | SZ 4 Class 14 Across the Line Full Voltage Heavy Duty Non-Combination Non-Reversing |
| Dimensions | 25 in H x 14 in W x 9 in D |
| Amperage rating | 50 to 200 A |
| Coil voltage | 110 to 120 VAC, 220 to 240 VAC, 110 VAC, 190 to 220 VAC |
- SKU SIEMAN14JUH32BA
