Home » Robertshaw 2374-510 | SPDT Adjustable Differential Air Pressure Switch

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Robertshaw

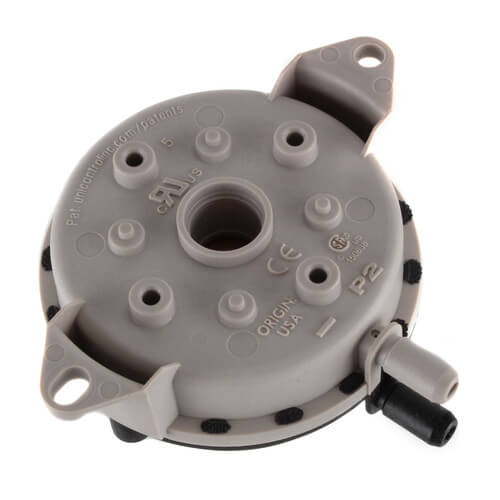

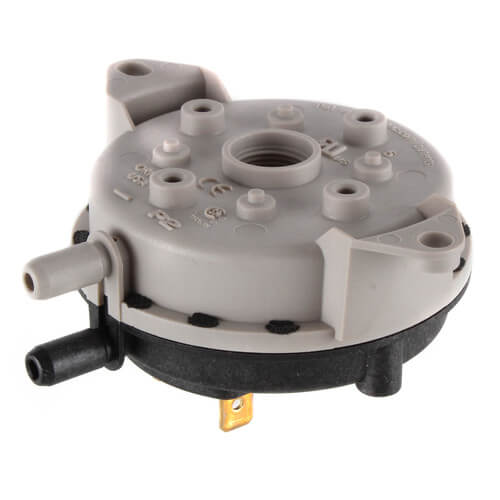

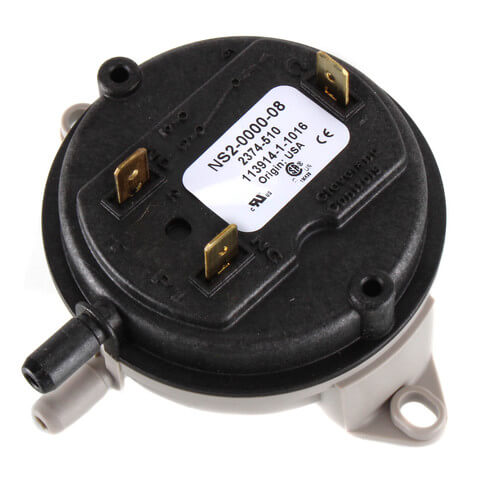

Robertshaw 2374-510 | SPDT Adjustable Differential Air Pressure Switch

In stock
SKU: ROB2374-510
$54.00
100% Secure Payments
Industry Leading Quality & Service

Got questions? Ask an expert!

Email 516-382-1019

Description

–
The new 2374 Series Adjustable Air Sensing Switches are designed to replace a wide variety of air-sensing switches found in residential and light commercial applications including - furnaces, electronic air cleaners and humidifiers. Two models are currently available with an adjustable range of .2" W.C. to 1.0" W.C. or 1.0" W.C. to 4.0" W.C. Both models are provided with an SPDT switch that can be actuated by positive or negative pressure, or by pressure differential. Highly accurate, these switches are practically insensitive to temperature change with an operating temperature range of -40°F to 190°F (40° to 88°C). They are U.L. and C.S.A. approved for aftermarket applications. Each switch is provided with mounting hardware and an adjustment tool for easy installation and calibration.

Specs

–
Max Pressure (PSI):

0.5
Switch:

SPDT
Electric Connection:

1/4" spade
Ambient Temperature:

-40°F to 190°F
Mount:

Diaphragm Vertical
Setpoint Range:

.10" - 10.0" W.C.

The new 2374 Series Adjustable Air Sensing Switches are designed to replace a wide variety of air-sensing switches found in residential and light commercial applications including - furnaces, electronic air cleaners and humidifiers. Two models are currently available with an adjustable range of.2" W.C. to 1.0" W.C. or 1.0" W.C. to 4.0" W.C. Both models are provided with an SPDT switch that can be actuated by positive or negative pressure, or by pressure differential. Highly accurate, these switches are practically insensitive to temperature change with an operating temperature range of -40°F to 190°F (40° to 88°C). They are U.L. and C.S.A. approved for aftermarket applications. Each switch is provided with mounting hardware and an adjustment tool for easy installation and calibration.

Specifications

Brand Robertshaw
MPN 2374-510
Max pressure (PSI) 0.5
Switch SPDT
Electric connection 1/4" spade
Ambient temperature -40°F to 190°F
Mount Diaphragm Vertical
Setpoint range .10" - 10.0" W.C.
  • SKU ROB2374-510
